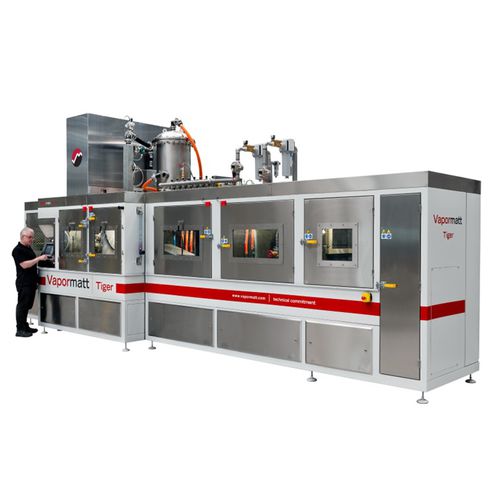

Vapor blast cabinet Tiger

roboticruggedstainless steel

Overview The Tiger is our highly efficient linear format wet blasting, rinsing and drying system. It is suitable for the most sophisticated and demanding of high-capacity production environments and provides maximum levels of process control and consistency. It combines several process steps into one automated system to significantly boost throughput. Key features include: • Fully automatic in-line wet blasting, cleaning and drying system optimised for tooling applications • Up to 20 component pallets (or 40kg (88.2 lbs) max. load) can be stored in the auto-load unit • Automatically loads, wet blasts, multi-stage spray rinses, ultrasonic washes, dries and unloads components • Sophisticated process control and monitoring • Recipe driven parameter setting and post-process reporting • Different processes and up to 999 blast recipes can be developed, stored and used when required for different component batches • Extremely consistent and reproducible processing within +/-5μm (0.2 thou) • High quality stainless steel cabinet, made from corrosion resistant high-grade stainless steel, offering a watertight enclosure • Vapormatt 4.0 enabled for remote and predictive/preventative maintenance tasks - maximising production up-time Industries • Cutting tools Applications • Edge honing 70 μm (2.8 thou) +/- 10% or +/- 5μm (0.2 thou) whichever is larger* • Surface cleaning/skin removal to enhance coating adhesion • Polishing, pre and post coating • Selective coating removal • Peening for coating internal stress profile enhancement • Suitable for replaceable inserts of varying 3D geometries • Remove burrs without dimensional change
