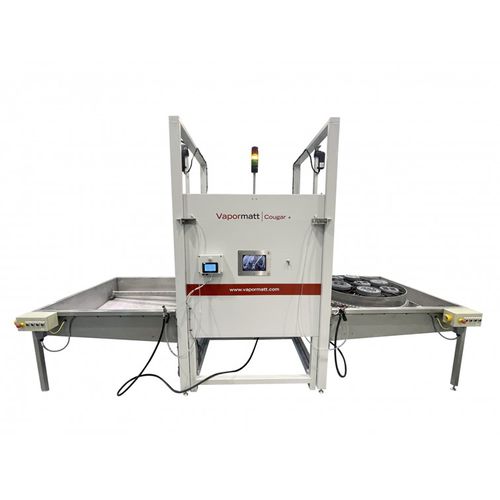

Wet blast cabinet Cougar

automaticdoublerugged

Overview Dual turntables, powered vertical doors and load ends for loading convenience and max. productivity. Whilst one set of components is being processed, the other turntable can be loaded.(max. load 1000kg (2205lb) UDL) The Cougar + automatic wet blasting system is highly versatile and operator-friendly. It is particularly well suited to heavy users thanks to its durability, reliability and repeatability of processing. Key features include: • Large working envelope of max. 1200mm (48”) dia. when blasting from above only (1000mm (40”) dia. if blasting from above and below), which allows the Cougar + to process a vast range of different components of all shapes and sizes • High-quality stainless-steel blast cabinet • Accessible slide-out turntable for ease of loading and unloading • A range of turntable options and mats are available to suit the components being processed • Highly configurable to perfectly match production requirements and components, see the list of configuration options below • Powerful multi-gun blast head, and for relevant applications, the option of double above and below blast heads for maximum productivity • Sight glass allows quick and easy measurement of blast media concentration levels, important for consistent wet blasting Industries • Cutting tools • Round shank tools • Medical implants • Medical instruments • Additive manufacturing components • Hygienic surfaces for food • Jet engine components • Aircraft wheels • Extrusion die cleaning Applications • Component cleaning • Deburring • Preparation for composite bonding • Surface activation for PVD/CVD coatings • Paint stripping • Surface improvement after casting
