Valve bag filling system VUSW
for foodfor mortarfor the food industry

valve bag filling system
valve bag filling system
Add to favorites
Compare this product


Container type
valve bag
Product applications
for food, for mortar
for the food industry
weight, screw
Other characteristics
compact, ATEX, gross weight

Max.: 100 p/h

Min.: 40 p/h


Max.: 50 kg (110 lb)

Min.: 5 kg (11 lb)

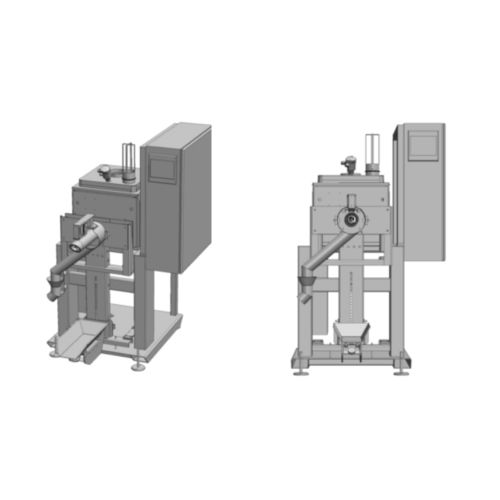

Pipe-in-pipe gross weight valve bag filling system for valve bags in very compact design. This machine is suitable for difficult and critical products such as flour, grain, iron oxide, dry mortar, plastic fiber and for valve bags with inner and outer valve. Dosing is done by means of a screw, which transports the product directly into the valve bag. bag sizes: valve width: 120-180 mm; length up to 1000 mm (other sizes upon request) Execution • gross weigher with integrated pipe-in-spout dosing • very compact design • bag chair (height adjustable) • calibratable weighing electronics according to EU-directive MID Options • screw that can quickly be taken out for cleaning • screw with flexible hopper • bag chair with mechanical vibrator • bag chair with pneumatical bag drop • hygienic design for food and pharmaceutical application
