Weigher for the food industry VBSW

for powdersfor dosing

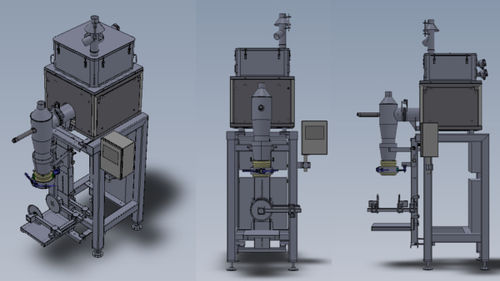

Gross bagging weigher for poorly flowing products such as cement, flour, milk powder, spices, chemicals etc.. This machine type VBSW is used for many different applications and depending on the products to be filled, can be equipped with different dosing systems, e.g. auger dosing system, vibrator dosing chute or tube, belt dosing, swivel valve, rotary valve etc. Having different filling spouts and bag chairs, the VBSW is also suitable for filling of buckets or boxes. By combining the machine with closing units (i.e. sewing machine with folding, bag turning unit or bag lifting device) and transport equipment this gross weigher can be extended to a semi-automatic bagging line, as shown on the picture below. The machine properties are: Filling range: 1...50 kg (depending on design more) bag sizes: width 200-600 mm; length up to 1100 mm (other sizes upon request) cartons, drums, buckets: sizes on request Execution • gross bagging weigher with filling spout and bag chair on the weigher • solid frame with adjustable feet • filling spout with one-hand bag clamp • height adjustable bag chair • weighing electronics calibratable according to EU-directive MID Options • stainless steel machine frame • vibrators on product guiding parts to avoid caking • bag lift to take the bag from the filling spout gently. • bag chair with vibrator • defluidisation probles for products with high amount of air retention • integrated metal separator • different filling spouts with blow-up clamp, pneumatic bag clamp for open mouth bags • filling spout for buckets or boxes • hygienic design for food and pharmaceutical application • ATEX-conforming design
