Hydraulic tipping station BS121
palletfor forklift trucks

hydraulic tipping station
hydraulic tipping station
hydraulic tipping station
hydraulic tipping station
hydraulic tipping station
Add to favorites
Compare this product


Characteristics

Operation
hydraulic
Applications
pallet
Other characteristics
for forklift trucks

Description

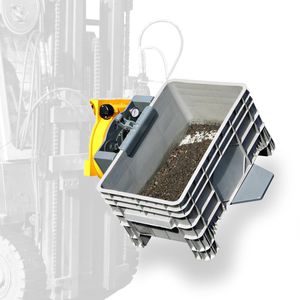

Hydraulic lateral container tilter that can be installed on the fork plate of the forklift, for rotating all types of bins and containers. The BS121 tilter has been designed to rotate containers of different diameters and types (iron, plastic, cardboard). The clamping jaws, completely covered with interchangeable high adhesion rubber, are hydraulically driven by a pair of cylinders; the hydraulic rotation is continuous at right/left side by 360°. Hydraulic actuation of the clamping/release and rotation offers important advantages: first of all it allows the bins to be moved and rotated without the operator having to leave the forklift; secondly, thanks to the maximum pressure valve, the bins can always be tightened with the correct clamping pressure (neither too weak nor too high) and last but not least, from a safety point of view, the block valves located on the cylinders keep the bins tight even in the event of hydraulic pipes being cut. The tilter is simply and safely secured to the forklift plate by means of the clamping bracket.
