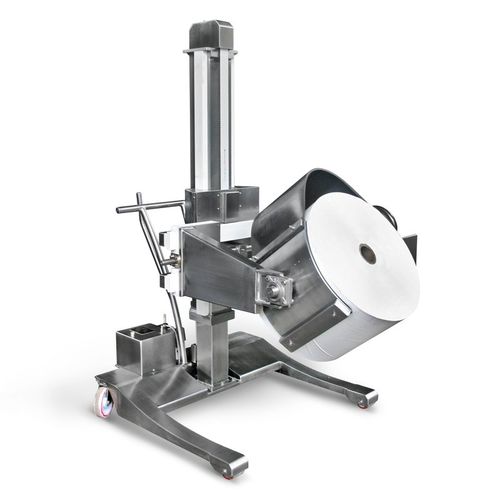

Manual stacker truck BS120 DVB
walk-behindfor coilsfor the pharmaceutical industry

manual stacker truck
manual stacker truck
Add to favorites
Compare this product


Characteristics

Energy
manual
Operator
walk-behind
Applications
for coils, for the pharmaceutical industry, for reel handling
Carrying capacity

300 kg (661.4 lb)

Lifting height

3,300 mm (129.92 in)

Description

The trolley for reels BS120 DVB equipped with a manual frontal tilter is the ideal product if a small quantity of reels (up to a maximum weight of 300 kg) with different diameters and height. With the help of appropriate accessories we are also able to handle objects with special shapes. The single column at the centre of the trolley offers a good view from all angles and makes it extremely manoeuvrable; it also allows, in the stainless steel version, high quality finishes that can be easily cleaned even with aggressive products. The reel is gripped by clamping jaws completely covered with interchangeable rubber and locked with a sturdy clamping handwheel; continuous 360° frontal rotation is achieved by manually actuating the handwheel, which can engage a chain to make it easier for the operator to empty the drums at height. A special feature of all VEAB manual tilting trolleys, which is uncommon and should not be underestimated from a safety point of view, is that they keep the drum stable in the emptying position once rotated.
