Hydraulic stacker truck BS91 DVP
pneumaticwalk-behindfor drums

hydraulic stacker truck
hydraulic stacker truck
hydraulic stacker truck
hydraulic stacker truck
hydraulic stacker truck
Add to favorites
Compare this product


Characteristics

Energy
hydraulic, pneumatic
Operator
walk-behind
Applications
for drums
Carrying capacity

250 kg
(551.2 lb)

Lifting height

1,650 mm
(64.96 in)

Description

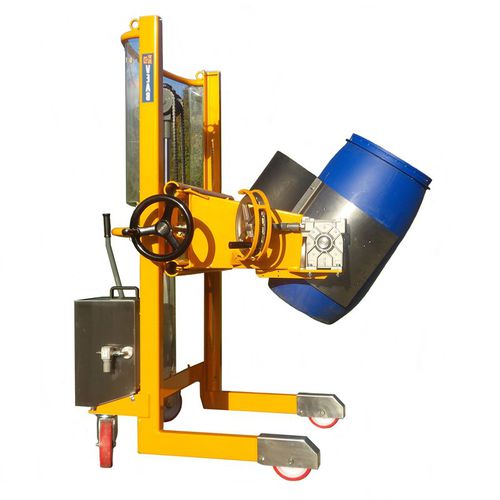

BS91 DVP is an pneumohydraulic drum lift tilter trolley equipped with a manual frontal drum tilter capable of handling a wide variety of drums. This type of trolley, being equipped with non-electrical components is particularly suitable for use in potentially explosive environments regulated by Atex regulations. The lifting and descent by compressed air (about 6 bar), allows significant emptying heights to be reached in a short time and without any effort on the part of the operator; the trolley is also equipped with a manual hydraulic pump with lever which allows the lifting of the reel if the compressed air is not present in the work environment. The pneumohydraulic motor is placed in a special compartment, which has IP55 protection degree against the penetration of dust and water splashes. The drum is gripped by the 400 mm high clamping jaws, completely covered with interchangeable rubber and locked with a sturdy clamping handwheel; continuous 360° frontal rotation is achieved by manually actuating the handwheel, which can engage a chain to make it easier for the operator to empty the drums at height. With the help of appropriate accessories we are also able to handle drums that are not cylindrical or objects with special shapes. A special feature of all VEAB manual tilting trolleys, which is uncommon and should not be underestimated from a safety point of view, is that they keep the drum stable in the emptying position once rotated.
