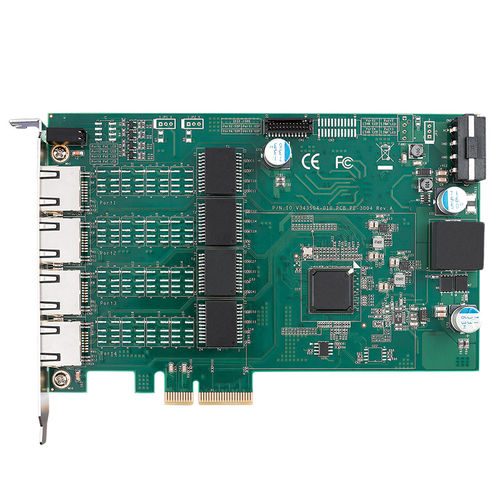

PCI Express interface expansion card PE-3004

EthernetLANindustrial

Intel® Ethernet Server Adapter I350 supports 4-port Independent Gigabit Ethernet and performance enhancing LAN features Supports IEEE 802.3az Energy Efficient Ethernet (EEE) and DMA Coalescing (DMAC) Power Management Features All-in-one, fully-integrated single-chip GigE switching solution with lower power consumption IEEE 802.3at Power over Ethernet (PoE+), up to 25.5W Power Output at 48V DC per port 4-port Independent Gigabit Ethernet, optional supports rugged M12 connections IEEE 1588 Precision Time Protocol (PTP) and IEEE 802.1AS implementation Up to 9.7K Jumbo Frame, Link Aggregation -25°C to 70°C Operating Temperature PE-3000 is a series 4-port independent gigabit Ethernet (GigE) card supporting 4-port Gigabit IEEE 802.3at PoE+, or dual LAN Bypass mode. Powered by Intel® Ethernet Server Adapter I350 supports 4-port Independent Gigabit Ethernet and performance enhancing LAN features, IEEE 802.3az Energy Efficient Ethernet (EEE) and DMA Coalescing (DMAC) Power Management functions. Just simply by RJ45 or optional rugged M12 connections, Vecow PE-3000 is enabled to provide up to 1000Mbps data rate each port with teaming functions, link aggregation (LAG), 9.7K Jumbo Frame, IEEE 1588 Precision Time Protocol (PTP), IEEE 802.3AS and easy maintenance. Vecow PE-3000 is a great solution for Industrial Ethernet, Intelligent Surveillance, Factory Automation, Mobile DVR/NVR, Intelligent Transportation System (ITS), Machine Automation and any Industry 4.0/IIoT applications.
