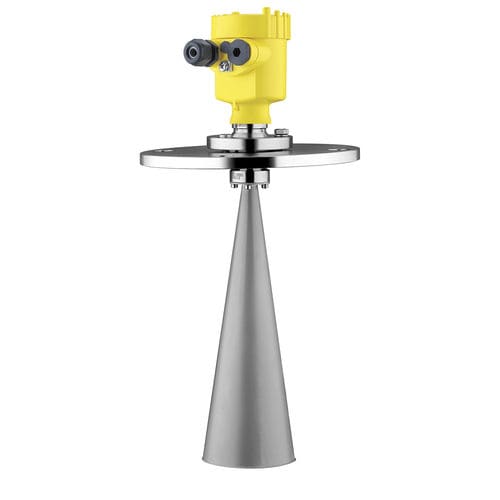

Radar level sensor VEGAPULS SR 68

bulk solidsModbusPROFIBUS

Radar sensor for continuous level measurement of bulk solids Standard radar sensor Application area The large selection of process fittings and materials allows use in wide temperature and pressure ranges. The VEGAPULS SR 68 is a radar sensor for continuous measurement of bulk solids even under difficult process conditions. It is particularly suitable for level measurement in high silos and large bunkers. The VEGAPULS SR 68 is an economical solution thanks to the simple setup and the reliable, maintenance-free operation. Your benefit High plant availability, because wear and maintenance-free Maintenance-free operation through non-contact measuring principle Reliable measurement independent of vapour, dust and noise The level instrument VEGAPULS SR 68 is the trustworthy solution for level measurement in bulk solids silos up to 30 m high or in bunkers. Since even the smallest radar reflections from bulk solid surfaces are detected, the sensor is used in a wide range of applications. Reliable level measurement of any kind of bulk solid material is ensured with the level instrument VEGAPULS SR 68. Quick product changes can be carried out easily without recalibration. Measuring range - Distance 30 m Process temperature -40 ... 250 °C Process pressure -1 ... 100 bar Accuracy ± 2 mm Version for separate horn antenna with horn antenna ø 40 mm with horn antenna ø 48 mm with horn antenna ø 75 mm with horn antenna ø 95 mm with parabolic antenna ø 245 mm Materials, wetted parts 316L Alloy C22 (2.4602) 1.4848 Threaded connection ≥ G1½, ≥ 1½ NPT Flange connection ≥ DN50, ≥ 2" Seal material FKM FFKM
