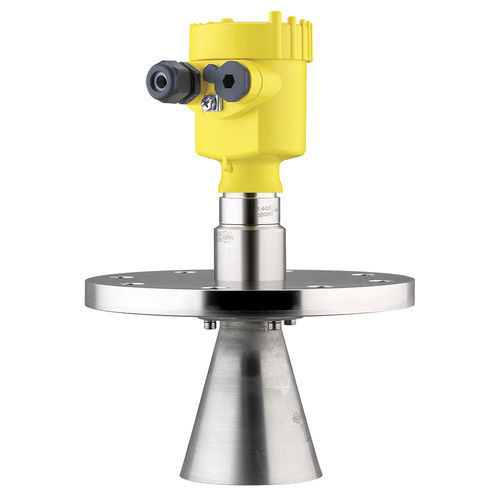

Radar level sensor VEGAPULS 66

for liquidsModbusHART

Radar sensor for continuous level measurement of liquids In extreme temperatures and pressures Application area The extended selection of process fittings and materials allows use in extreme temperature and pressure ranges. The VEGAPULS 66 is a sensor for continuous level measurement of liquids under arduous process conditions. It is suitable for applications in storage tanks, process vessels or standpipes. The VEGAPULS 66 can be used universally thanks to different antenna versions. Your benefit High plant availability, because wear and maintenance-free Maintenance-free operation through non-contact measuring principle Reliable measurement independent of process conditions The application areas for the radar level instrument VEGAPULS 66, which can handle the toughest process conditions, are found mainly in the chemical industry, in environmental and recycling technology and in the petrochemical sector. The non-contact radar level instrument is used in steam drums (process heat generation) as well as in mud pits, process vessels and storage tanks. Measuring range - Distance 35 m Process temperature -60 ... 400 °C Process pressure -1 ... 160 bar Accuracy ± 8 mm Version for separate horn antenna with horn antenna ø 48 mm with horn antenna ø 75 mm with horn antenna ø 95 mm with ø 52 mm standpipe for separate standpipe with horn antenna ø 140 mm enamelled with horn antenna ø 145 mm with horn antenna ø 160 mm enamelled with horn antenna ø 195 mm with horn antenna ø 240 mm Materials, wetted parts 316L Alloy C22 (2.4602) Enamel Alloy C276 (2.4819) 316 1.4435 Flange connection ≥ DN50, ≥ 2" Seal material EPDM FKM FFKM graphit and ceramic PTFE
