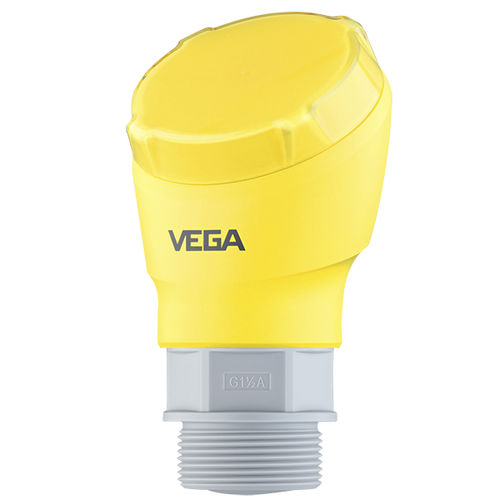

Compact radar sensor for continuous level measurement
For standard measuring tasks, plastic housing IP66/IP67, Type 4X
Application area
4 ... 20 mA/HART output, measuring range up to 15 m, accuracy ±2 mm, Ex approval
VEGAPULS 21 is the ideal sensor for non-contact level measurement in simple applications. It is particularly suitable for use in water treatment, storage tanks with acids, lyes and additives in all industrial areas, or for measuring levels in plastic tanks from the outside through the tank wall.
Your benefit
Exact measurement results independent of medium properties and process conditions
High accuracy and wide measuring range
Maintenance-free operation due to non-contact 80 GHz radar technology
Technical specifications
Measuring range - Distance
15 m
Process temperature
-40 ... 80 °C
Process pressure
-1 ... 3 bar
Accuracy
± 2 mm
Materials, wetted parts
PVDF
Threaded connection
G1½, 1½ NPT, R1½
Seal material
FKM
Housing material
Plastic
Protection rating
IP66/IP67, Type 4X
Output
4 … 20 mA/HART
Ambient temperature
-40 ... 70 °C
