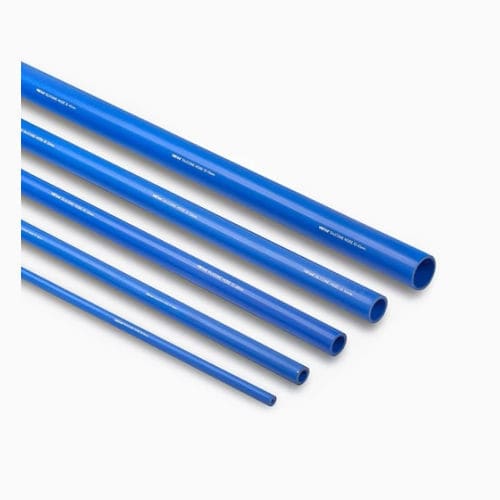

Water hose Vena®Sil 240for aircooling fluidVMQ
Add to favorites
Compare this product
Characteristics
- Use
- for water, for air, cooling fluid
- Material
- VMQ, silicone, with polyester reinforcement
- Applications
- high-temperature, cooling, heating
- Other characteristics
- flexible, smooth, with smooth inner surface, multilayer
- Inner diameter
Max.: 100 mm
(3.937 in)Min.: 6 mm
(0.236 in)- Pressure
Max.: 21.2 bar
(307.48 psi)Min.: 2.8 bar
(40.611 psi)- Temperature
Max.: 180 °C
(356 °F)Min.: -60 °C
(-76 °F)- Delivered length
Max.: 4 m
(13'01" )Min.: 1 m
(3'03" )
Description
Designation
Vena®Sil 240 (Vena®Sil Plus) Flexible silicone hose for heating and cooling systems
Short description
Flexible silicone hose specially recommended for pressurized air or water conduction at high temperatures.
Applications
Properties
Outer layer: Silicone VMQ, smooth, blue
Reinforcement: 4 plies of polyester fabric
Inner layer: Silicone VMQ, smooth, blue
Temperature range: -60 °C to +180 °C (-67 °F to +356 °F)
Manufacturing length
From 1 to 4 m; can be cut to shorter lengths
Quality
Silicone rubber complies with RoHS Directive 2002/95/EC and subsequent amendments (2011/65/EU, 2015/863).
Technical specifications
Vena®Sil 240 (Vena®Sil Plus) Flexible silicone hose for heating and cooling systems
Short description
Flexible silicone hose specially recommended for pressurized air or water conduction at high temperatures.
Applications
- Industrial vehicles (coaches, buses, trucks)
- Renewable energy (cogeneration units, wind power, electric systems, fuel cells)
- Railway, marine, defense and other industrial applications
Properties
Outer layer: Silicone VMQ, smooth, blue
Reinforcement: 4 plies of polyester fabric
Inner layer: Silicone VMQ, smooth, blue
Temperature range: -60 °C to +180 °C (-67 °F to +356 °F)
Manufacturing length
From 1 to 4 m; can be cut to shorter lengths
Quality
Silicone rubber complies with RoHS Directive 2002/95/EC and subsequent amendments (2011/65/EU, 2015/863).
Technical specifications
- Model: Vena®Sil 240
- Brand: Venair
- Product type: Flexible silicone hose for heating and cooling systems
- Outer layer: Silicone VMQ, smooth, blue
- Inner layer: Silicone VMQ, smooth, blue
- Reinforcement: 4 plies of polyester fabric
- Temperature range: -60 °C to +180 °C (-67 °F to +356 °F)
- Manufacturing lengths: 1 to 4 m, cuttable to shorter lengths
- Recommended for: Pressurized air or water conduction at high temperatures
- Compliance: RoHS (2002/95/EC, 2011/65/EU, 2015/863)
