Insulation bushing PTSflangeplug-inepoxy resin
Add to favorites
Compare this product
Characteristics
- Function
- insulation
- Connection type
- flange, plug-in
- Material
- epoxy resin
- Product applications
- for cables, for SF6
Description

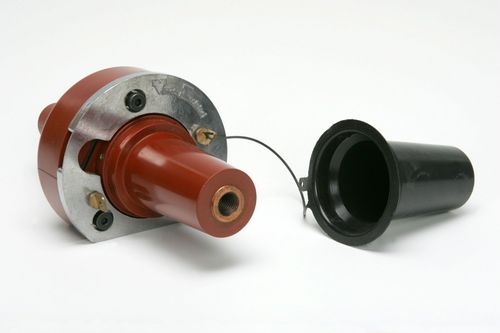

Red epoxy resin bushing for cable connection EN 50181 for SF6 gas insulated devices.
It is fixed on the tank through OT58 built in brass fittings.
This insulator has a lateral capacitive outlet for voltage presence signaling and it is supplied with an EPDM O-ring gasket and safety plastic cap for EN 50181 connection.
It is supplied with fixing set including: aluminum flange (with eyelets for 250A and 400A versions), screws, washers and insulating spacer for the capacitive output.
PTS bushings has the same frame as its female versions PPC e PPT.
APPLICATIONS
Indoor, with plug-in cable connection, SF6 insulated devices.
TECHNICAL DATA
Highest voltage for equipment (Um): 24kV – 36kV
Rated current (Ir): 250A – 400A – 630A
Capacitive outlet for voltage presence detection
CUSTOMIZATIONS
Customizations are available.
REFERENCE STANDARDS
EN 50181, IEC 60137
