Insulation bushing PPT-PPC-PPE

flangeplug-inepoxy resin

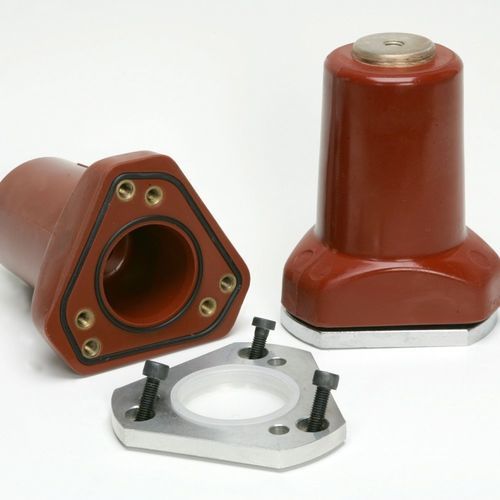

Red epoxy resin bushing for SF6 gas insulated devices with EN 50181 cable connection. It is fixed on the tank through OT58 built in brass fittings. This insulator is supplied with aluminium flange, EPDM O-ring gasket and safety plastic cap for EN 50181 connection. Version PPC-DC 400-630A has a capacitive outlet and its insulating spacer compatible with our electronic devices. APPLICATIONS Indoor, with plug-in cable connection, SF6 insulated devices. TECHNICAL DATA Highest voltage for equipment (Um): 24kV – 36kV Rated current (Ir): 250A – 400A – 630A CUSTOMIZATIONS Customization unavailable REFERENCE STANDARDS IEC 60137, EN 50181, ENEL DJ 1115, ENEL DJ 1153, ENEL DJ 1113
