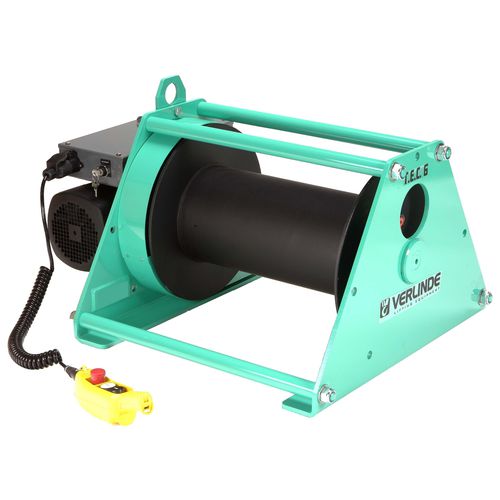

Electric winch TEC series
tractionhoistingcompact

electric winch
electric winch
electric winch
Add to favorites
Compare this product


Characteristics

Operation
electric
Application
hoisting, traction
Other characteristics
compact
Capacity

Min.: 600 kg (1,322.8 lb)

Max.: 7,500 kg (16,534.7 lb)

Speed

Min.: 2,000 mm/min (1.3 in/s)

Max.: 20,300 mm/min (13.3 in/s)

Rope diameter

Min.: 6.8 mm (0.27 in)

Max.: 24 mm (0.94 in)

Cable length

600 mm, 800 mm (23.62 in)

Motor power

Min.: 2,200 W (2.99 hp)

Max.: 11,000 W (14.96 hp)

Weight

Min.: 215 kg (473.99 lb)

Max.: 1,950 kg (4,299.01 lb)

Description

Electric winch for loads of 600 to 7,500 kg The ideal solution for traction and hoisting loads of up to 7,5 tons. This line of electric winches will perfectly match your needs. Furthermore, its design displays qualities of discretion, since it is highly compact, and calls for very little maintenance. TEC electric winches comply with the EC directive concerning machines. Technical Characteristics • - A frame of modular and open-ended design, permitting for instance multiple cable exit directions from the drum • - 230 / 400 V / 3 Ph / 50Hz power supply • - Control voltage 24 V switchgear. Thermic control circuit breaker • - Electric cabinet to IP 55 • - Handset with emergency stop on 3m sprially wound cable Options Available • - Limit switch • - Electronic load limiter • - Grooved drum • - Variable speed winch • - Radio remote control
