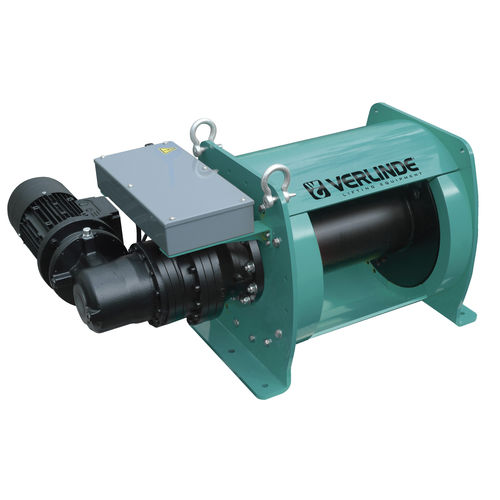

Electric winch TVI series
liftinghaulagepulling

electric winch
electric winch
Add to favorites
Compare this product


Characteristics

Operation
electric
Application
lifting, pulling, haulage
Other characteristics
compact, planetary, rugged
Capacity

Min.: 1,000 kg (2,204.6 lb)

Max.: 10,000 kg (22,046.2 lb)

Speed

Min.: 1,500 mm/min (1 in/s)

Max.: 10,500 mm/min (6.9 in/s)

Rope diameter

Min.: 8 mm (0.31 in)

Max.: 24 mm (0.94 in)

Motor power

Min.: 1,100 W (1.5 hp)

Max.: 9,200 W (12.51 hp)

Description

Industrial electric winch for loads of 1,000 to 10,000 kg The range of compact electric winches TVI designed for the industrial market. Due to the robustness, the compact dimensions, the wide range of load capacity, the large availability of options, the diversity of possible attachment, the TVI is perfectly adapted to all standard lifting or pulling/hauling applications. Technical Characteristics • - Power supply 230 / 400 V / 3 Ph / 50Hz. • - IP55 motor brake unit. • - Low voltage control 24V – Thermal circuit breaker. • - Electric cubicle IP 55 on the winch. • - Drum length : 350 mm. • - Planetary gear box. • - Push button box with emergency stop. • - 3 meter control cable. • - Several rope exit and options available. Options Available • - IP66 limit switches. • - Additional rope fixation. • - Load limiter. • - Grooved drum 1 fixation. • - Grooved drum 2 fixations. • - Brake release. • - Add shaft. • - Drum length modification. • - Drum cover at 3/4 surface. • - Total Drum cover protection. • - Special motor voltage. • - Motor tropicalized. • - IP 56 motor. • - IP 65 motor. • - H class motor. • - Slack rope detection. • - Pressure roller. • - Variable speed. • - Offshore paint. • - Radio remote.
