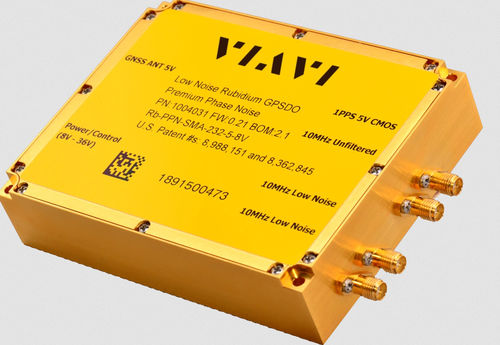

The LN Rubidium Reference builds upon and is backwards compatible to the VIAVI LN CSAC GPSDO product line. The LN Rubidium units have better Phase Noise and ADEV performance, lower thermal sensitivity, better holdover performance, longer lifetime and MTBF, and lower cost than comparable units. The LN Rb GNSDO™ has by far the lowest phase noise and best ADEV performance on the market today. The unit out-performs many expensive low-noise OCXOs in phase noise performance and high-end Cesium clocks in ADEV performance. The Ultimate performance variant typically exhibits -115 dBc/Hz noise at 1 Hz offset, with a noise floor lower than -168 dBc/Hz and ADEV performance of 5E-013 from 0.1 s to 20+ seconds, and less than 8E-014 ADEV averaged over 24 hours. Units can alternatively be ordered with a Chip Scale Atomic Cesium Clock (CSAC) for power consumption of less than 1.4 W, and a warmup with atomic lock of less than 2 minutes typically. The LN Rb GNSDOS unit also integrates the latest-generation GNSS receiver with GPS/Glonass/BeiDou/QZSS and SBAS support and can optionally be disciplined by an external SAASM GPS receiver. The LN Rb GNSDO comes in four ordering variants with different phase noise/ADEV performance levels and respective pricing, as well as different atomic clock performance levels and technologies (both Rubidium and Cesium miniature atomic clocks can be ordered). The unit comes in a ruggedized, gold-plated aluminum enclosure that can be ordered in a conformally coated version. The unit is fully backwards compatible to the VIAVI CSAC GPSDO products line, supporting both SCPI as well as NMEA communications interfaces
