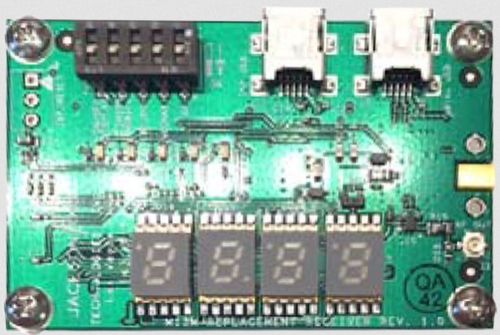

GNSS receiver board M12M

GPSGLONASSGALILEO

The M12M Replacement Receiver is designed to be form, fit, and function compatible to the legacy Motorola®/iLotus M12+ and M12M timing and navigation receivers while providing significant performance and feature enhancements and upgrades by using a late-model 8th-generation high-end GNSS Timing receiver. This unit can be used as a stand-alone GNSS receiver via the USB interfaces, or as a plug-and-play upgrade receiver for legacy equipment. The unit is designed to replace the legacy receiver, instantly improving positioning and timing performance, cold-start and capture time, tracking sensitivity, noise immunity especially multipath and jamming immunity, as well as adding a host of additional features such as multi-GNSS system reception. The M12M replacement receiver supports GPS, SBAS (WAAS/EGNOS/MSAS/ GAGAN etc.), Glonass, QZSS, BeiDou, and later Galileo GNSS reception, with the capability to have any two GNSS systems being received at the same time. The unit also includes smart software that senses the vehicle dynamics and can quickly auto-adjust the Kalman filter parameters to optimize the position/timing fix, optimizing the performance dependent on actual vehicle dynamics. The M12M replacement receiver also adds the capability of generating a highly accurate frequency on a mini-coax (U.Fl) connector through a buffered 3 V CMOS output that can generate a user-programmable GNSS-synchronized frequency ranging from 1 Hz to over 14 MHz typically (10 MHz guaranteed).
