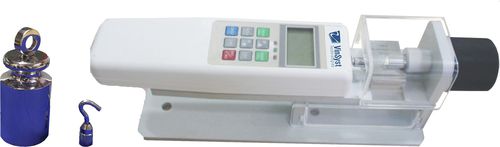

Universal hardness tester VTHT 2
portablefor measurement instrumentstablet

universal hardness tester
universal hardness tester
Add to favorites
Compare this product


Characteristics

Type
universal
Mounting
portable
Product applications
for measurement instruments, tablet
Other characteristics
automatic

Description

Item Code: VTHT4 VinSyst Portable Tablet Hardness Tester (VTHT series) is a Portable instrument to measure the Breaking Point of Tablets ranging from a 2 mm to 28 mm. The tester measures the Compressive Force with an Accuracy of ± 0.5% and Measures and Displays the Peak Force used to Fracture the Tablets. The instrument also reduces unnecessary costs to produce tablets out of Specified Hardness Range. Technical Specifications · Capacity - Up to 500N / 50kgf · Resolution - 0.005N · Accuracy - ± 0.5% · Tablet Range - 2 ~ 28 mm · Display - LCD with Backlight · Interface - RS-232 Salient Features Hardness measurement by load cell up to 500 Newtons Units of measurement in N, kgf and lbf PC connectivity / Printer Connectivity through RS232 port Programmable upper (T1) and lower (T2) tolerance limits Peak Hold and Auto Release Function Green and Red Light Indication for better understanding Memory of upto 10 testing data Automated semi-calibration (zero-point adjustment) Display of 10 test value and calculate the average of the value. LCD Display with back light Interchangeable Display Direction for better view Automatic Power Off Function Acrylic glass safety cover with disposal container Tester operates on rechargeable battery Standard Accessories: Cleaning Brush, Storage Case, 6V DC Power Adaptor, Collection Tray Optional Accessories: IQ, OQ, PQ Documents, Calibration Weights, Printer
