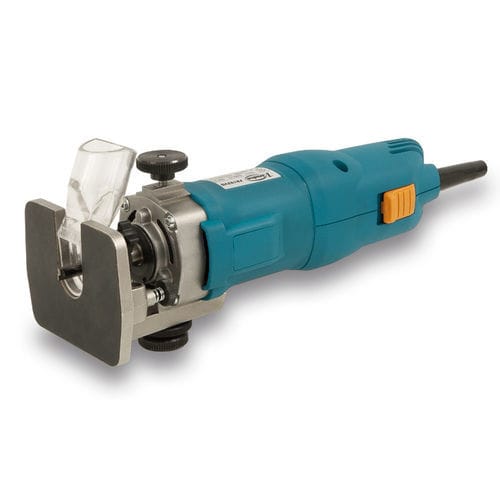

Electric hedge trimmer FR192VG

handheld

Description
The FR192VG profile router delivers precise profiling of laminated panels and is designed for comfortable, effective operation. It is suitable for small mouldings and ensures stability and consistent finishing. Ideal for cutting hinge recesses using Virutex template holders. The motor power enables rabbeting on doors or windows when using the appropriate cutter (optional). With the original supplied accessories it can produce straight or circular grooves with high precision and ease of use.

Versions

• Ref. 9200800 FR192VG collet Ø 6 mm (230 V)
• Ref. 9200801 FR192VG collet Ø 8 mm (230 V)

Optional

• 1750000 ZB93 head for hinge insertion without template
• 1222024 Collet Ø 8 mm
• 1222085 Collet Ø 6.35 mm (1/4")
• 1250040 Vertical support shoe
• 1250041 Horizontal support shoe
• 1850042 45° support shoe
• 1250078 Horizontal support shoe 25 mm
• 1240046 Rabbeting cutter
• 3600000 AO93 three-body template holder for three hinges. Includes Ceur 95 mm template.
• 3900000 AM94 four-body template holder for four hinges. Includes Ceur 904 template for security doors.
• 1900000 AV93 single-body template holder for hinge placement. Includes Ceur 95 mm template.
• 1900200 PP19H single-body template holder for lock fronts and plates up to 300 mm.
• Professional cutters (see accessories reference)

Template guides

• 1250001 Outer Ø 10 mm for 6 mm cutters
• 1250002 Outer Ø 12 mm for 8 mm cutters
• 1250003 Outer Ø 14 mm for 10 mm cutters
• 1250004 Outer Ø 16 mm for 12 mm cutters
• 1250025 Outer Ø 18 mm for 14 mm cutters
• 1250035 Outer Ø 20 mm for 16 mm cutters

Technical data
Double insulation
Power: 1000 W
Max cutter Ø: 25 mm
Standard collet Ø: 6 mm
No-load speed: 14,000–30,000 rpm
Weight: 1.8 kg

Features / technical specifications

• Power: 1000 W
• Max cutter Ø: 25 mm
• Standard collet Ø: 6 mm
• No-load speed: 14,000–30,000 rpm
• Weight: 1.8 kg
• Double insulation
