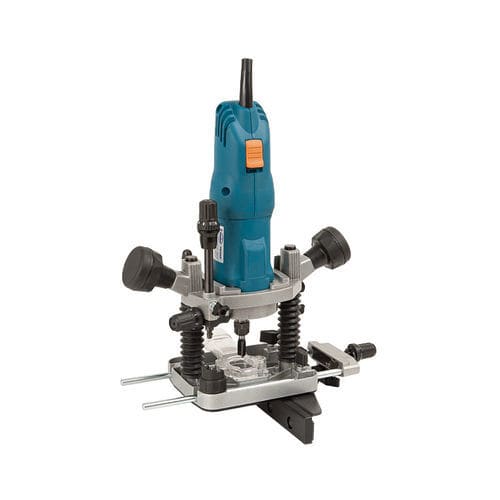

Manually-controlled router FR356Z

digitalsingle-spindlefor plastics

Description
The FR356Z is a multifunction convertible router with interchangeable heads. It includes a tupí (spindle) head that provides precise milling and good stability. It features a quick depth adjustment with 6 positions, a lateral fence with fine adjustment and graduated scales. The tool is equipped with a 1000 W motor with electronic speed control and an electronic system that maintains constant speed/torque under load. Its COMBI capability allows attachment of different head types (tupí/spindle, profiler or straight grinder). Adaptable heads are fitted with a port for external dust extraction.

Standard equipment

• Spindle (tupí) head
• Lateral fence
• Connector for external dust extraction
• Template guide Ø 19 mm for 26 mm pitch rings
• Service wrenches

Optional

• 5600060 CA56U head
• 5646365 Round head
• 5646343 Optional corner-rounding accessory
• 6045665 Double fence accessory
• 6446073 Flexible extraction hose 3.5 m
• 1746245 Flexible extraction hose 5 m
• 6640125 Template cutter AGB for tilt-and-turn fittings
• Copying guides for templates: 7722168 Ø ext. 10 mm (for 6 mm cutters), 7722120 Ø ext. 12 mm (for 8 mm cutters), 7722121 Ø ext. 14 mm (for 10 mm cutters), 7722122 Ø ext. 16 mm (for 12 mm cutters), 7722169 Ø ext. 18 mm (for 14 mm cutters), 7722118 Ø ext. 20 mm (for 16 mm cutters), 7722119 Ø ext. 27 mm (for 23 mm cutters), 7722114 Ø ext. 30 mm (for 26 mm cutters), 7722161 for 16 mm pitch rings, 7722123 for 26 mm pitch rings, 7722162 for 34 mm pitch rings, 7722160 for AGB template Ø ext. 27 mm, 7722342 for AGB templates mod. AIRE 11-12 Ø ext. 21 mm
• Optional accessories (use as profiler): 6 mm / 6.35 mm (1/4”) collets, flexible hoses, carbide-tipped cutters (r=2, r=3, r=6, r=8 mm), non-silicone anti-adhesive Cantspray, etc.

Features / Technical specifications

• Power: 1000 W
• No-load speed: 14,000 - 27,000 min-1
• Standard collet Ø: 8 mm
• Weight: 3.8 kg
• Depth adjustment: quick adjustment with 6 positions
• Electronic speed control
• Electronic device that maintains constant RPM under load
• COMBI capacity: allows attachment of different heads (tupí, profiler, straight grinder)
• Extraction port on adaptable heads
• Product reference: FR356Z · Ref. 5600600 (230V)
