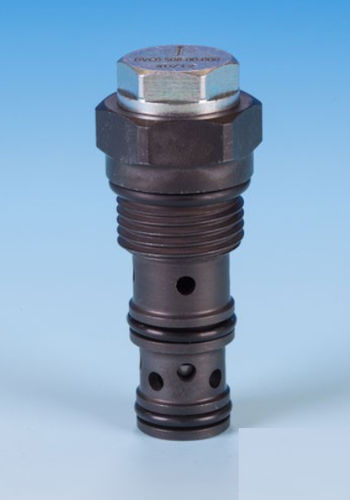

Spool hydraulic directional control valve DVC0.S08

hydraulically-operatedcartridgesteel

A 3 way 2 positions, spool type, direct acting, screw-in hydraulic, directional cartridge valve. The DVC0.S08 allows flow from 2 to 3. Once sufficient pressure is applied on port 1, the spool lifts allowing free flow from 1 to 2 while blocking port 3. The rigid design using a 1-piece body contributes to minimize the effect of eccentricities in cavity and provides great reliability. Low pressure drop thanks to optimized flow path. Technical Features All external surfaces are corrosion protected. All valve parts are made of high strength steel. Spool and cage are hardened and super-finished to ensure minimal wear and extended service life. Industry commonly used hybrid cavity. Internal leakage - 200 cc/min max @200 bar temperature - -30°C to 110°C fluids - Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt orientation - no restrictions installation torque - 40 - 45 Nm seal kit code - SK.062 weight - 0.090 kg
