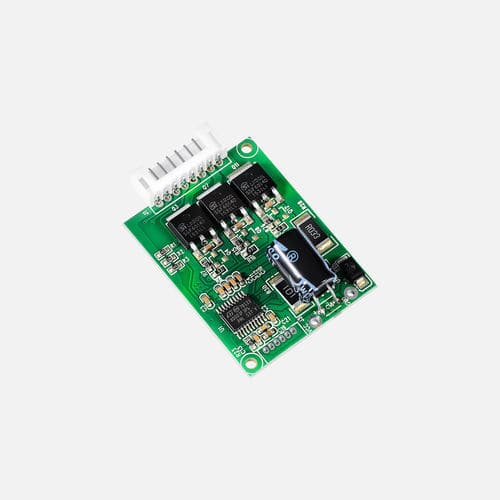

BLDC motor controller VSC 3002S
DCclosed-loopopen-loop

BLDC motor controller - VSC 3002S - Vishan Motor - DC / closed-loop / open-loop
BLDC motor controller - VSC 3002S - Vishan Motor - DC / closed-loop / open-loop
BLDC motor controller - VSC 3002S - Vishan Motor - DC / closed-loop / open-loop - image - 2
Add to favorites
Compare this product
Go to the Vishan Motor website for more information

Characteristics

Motor type
DC, BLDC
Other characteristics
programmable, with speed control, closed-loop, open-loop
Input voltage

Max.: 30 V

Min.: 10 V

Current

2 A, 5 A

Motor power

30 W
(0 hp)

Rotational speed

Max.: 60,000 rpm
(376,991.1184 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Description

Based on the hardware and software solutions of our own drive team,we can provide motor control solutions for motors with hallsensors,without hallsensors,and servo motors. Applications: It is mainly suitable for working voltages ranging from 4.5VDC to 52VDC,with a maximun current up to 30A.
