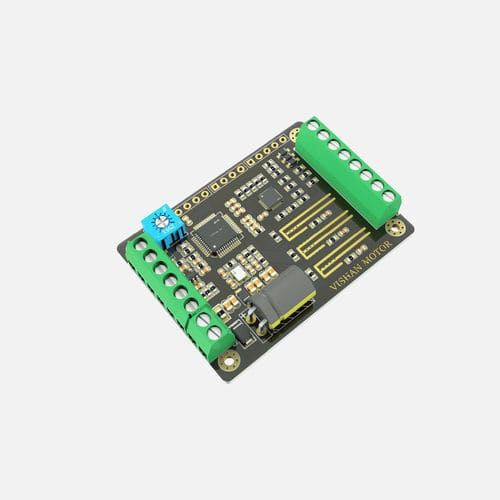

Brushless speed controller VSC 3003SLBLDCfor servo motorsfor electric vehicles
Add to favorites
Compare this product
Characteristics
- Motor type
- brushless, BLDC, for servo motors
- Applications
- for electric vehicles, for robotics, industrial, motion control
- Other characteristics
- with speed control
- Input voltage
Max.: 30 V
Min.: 10 V
- Current
Max.: 10 A
Min.: 0 A
- Motor power
100 W
(0.1 hp)- Rotational speed
50,000 rpm
(314,159.2654 rad.min-1)
Description
Configuration
Based on the drive team's in‑house hardware and software solutions, the VSC 3003SL provides motor control for brushless motors with Hall sensors, sensorless brushless motors and servo motors. The controller can be adapted to different control modes and interface requirements for industrial applications.
Applications
Suitable for motors operating between 4.5 VDC and 52 VDC, with a maximum continuous current rating up to 30 A. Typical applications include industrial automation, robotics, small electric vehicles and other systems requiring precise speed control of brushless or servo motors.
Available tabs
Specifications + Detail
Specification image and parameter diagram for model VSC3003SL are available on the product page. Some detail sections are marked "To be continued" indicating additional information may be added later.
Technical specifications
Based on the drive team's in‑house hardware and software solutions, the VSC 3003SL provides motor control for brushless motors with Hall sensors, sensorless brushless motors and servo motors. The controller can be adapted to different control modes and interface requirements for industrial applications.
Applications
Suitable for motors operating between 4.5 VDC and 52 VDC, with a maximum continuous current rating up to 30 A. Typical applications include industrial automation, robotics, small electric vehicles and other systems requiring precise speed control of brushless or servo motors.
Available tabs
- Specifications + Detail
- Operating range
- Drawing
Specifications + Detail
Specification image and parameter diagram for model VSC3003SL are available on the product page. Some detail sections are marked "To be continued" indicating additional information may be added later.
Technical specifications
- Model: VSC 3003SL
- Series: VSC series
- Compatible motor types: motors with Hall sensors, sensorless brushless motors, servo motors
- Working voltage range: 4.5 VDC to 52 VDC
- Maximum continuous current: up to 30 A
- Available documentation tabs: Specifications + Detail, Operating range, Drawing
- Notes: Some detail sections on the page are labeled "To be continued"
