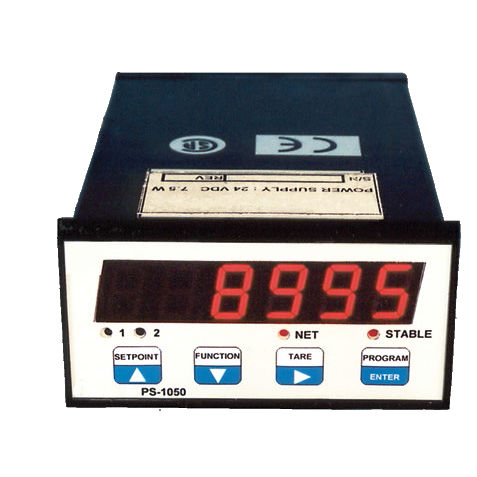

Process indicator PS-1050

digitalpanel-mountanalog output

PS-1050 digital/analog transmitters provide signal conditioning, amplification, and a corresponding digital or isolated analog output signal for tank/bin/hopper weighing systems. Front panel configuration and calibration streamlines system installation and operation. Calibration and configuration parameters also can be downloaded via PC based Pro-View Software. In either case, no dip switch or potentiometer adjustments are required. An isolated 0-10V or 4-20mA analog output provides factory floor communication for a data logger, remote panel meter, or PLC input. High level serial communication is available in RS-232, RS-422, or RS-485 format with Modbus RTU protocol. Up to 32 PS-1050.s can be connected point-to-point using the RS-485 serial output. Convenient 1/8 DIN size panel mounting and removable terminal block connectors simplify installation procedures. BLH Nobel offers the PS-121, 24Vdc Power Supply (data sheet #12155), for PS-1050 operation. Features - Push-button configuration and calibration - 10-Point load cell linearization - Selectable 0-10Vdc or 4-20mA isolated analog output - Peak hold functions for dynamic/historic measurement - Keypad entry or conventional dead load calibration - Selectable/adjustable digital filtering - Serial communication and Modbus RTU protocol
