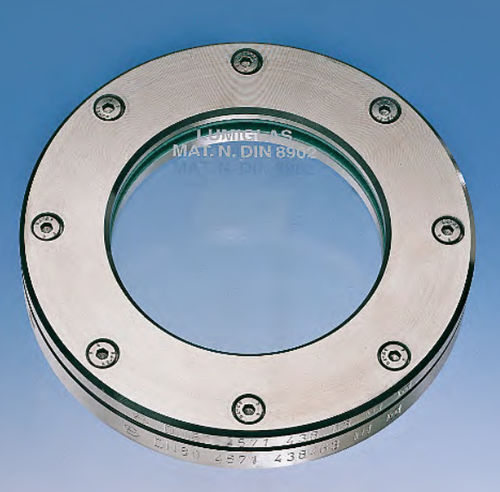

Vessel sight glass
stainless steelcarbon steelflange

vessel sight glass
vessel sight glass
vessel sight glass
vessel sight glass
Add to favorites
Compare this product


Characteristics

Specifications
for vessels, stainless steel, carbon steel, flange, weld-on
DN

Min.: 80 mm
(3.1 in)

Max.: 225 mm
(8.9 in)

Operating temperature

Min.: 0 °C
(32 °F)

Max.: 280 °C
(536 °F)

Description

For observation of interior of tanks, silos, stirred vessels, separators, pipelines etc. Description For welding into or onto vessel wall Clean, low profile flanges with counter sunk screws Easier to clean Viewing Diameter from 80mm to 225mm Operating Temperature up to 280°C Operating Pressure: Nil, no pressure Materials: Stainless, Carbon steel and speciality steels such as Hastelloy Custom built versions
