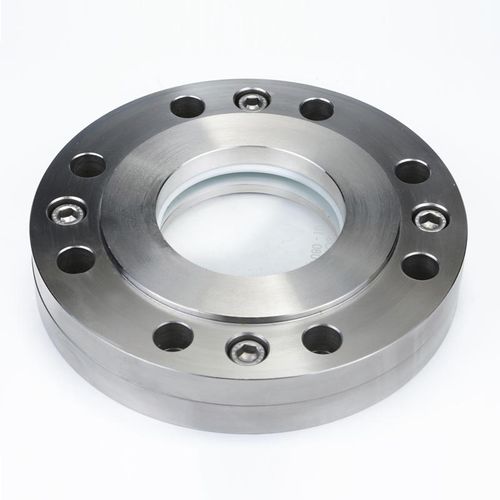

Vessel sight glass DIN 28121stainless steelcarbon steelflange
Add to favorites
Compare this product
Characteristics
- Specifications
- for vessels, stainless steel, carbon steel, flange
- DN
Max.: 200 mm
(7.9 in)Min.: 40 mm
(1.6 in)- Temperature
Max.: 200 °C
(392 °F)Min.: 0 °C
(32 °F)- Operating pressure
Max.: 25 bar
(363 psi)Min.: 0 bar
(0 psi)
Description
Observation and illumination of the interior of enclosed vessels (cauldrons, tanks, silos etc.). Sight glasses consist of round flange mountings to be welded into or onto a vessel, completed by a sight glass plate with appropriate seals.
Description
Circular flange assembly for bolting straight onto existing flange
Complete with fully gasketed glass disc
Nominal sizes: DN40 to DN200
Viewing Diameter: 48 to 150mm
Operating Temperature up to 200°C, higher available on request
Operating Pressure up to 25 bar
Materials: stainless, carbon steels and specials such as Hastelloy
Custom built versions
