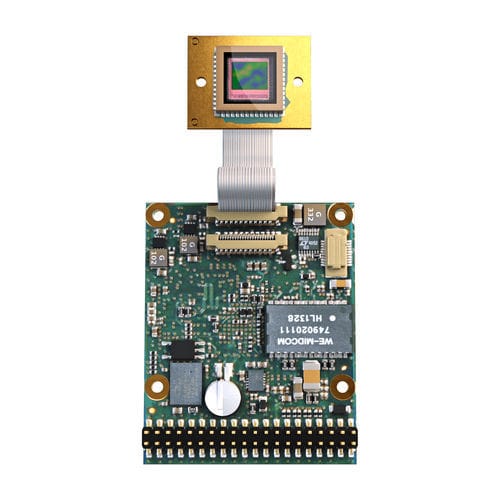

Board camera VCSBC nano Z-RH series

digitalindustrialfor embedded devices

More flexibility with external image sensor For even more flexible integration into your designs, these embedded vision systems have an external image sensor. The tiny CPU boards measure only 40 x 50 mm. Sensor: 1/2.3" CMOS Sensor, SONY Resolution (Pixel): 1920 x 1200 FPS: 118 Order from: Send request! Pixel Size: 3,45(H) µm x 3,45(V) µm Shutter: High-Speed: 1 µs (min.). Low-Speed: Bis max. 2 s einstellbare Integrationszeit Integration: Global Shutter Acquisition: Programmkontrollierter oder externer High-Speed Trigger, Vollbild & partieller Scan (ROI), Aufnahme jitterfrei Processor: Dual-Core ARM Cortex-A9 mit 2 x 866 MHz und integriertem FPGA RAM: 512 MB DDR-SDRAM Flash-EPROM: 16 GB flash memory (nicht flüchtiger Speicher) Dig. I/Os: 12 programmierbare Ein-/Ausgänge Trigger I/Os: 1 Trigger Eingang (opto-decoupled), 1 Blitztrigger Ausgang (open collector) Interfaces: Ethernet 1Gbit, serielle RS232, I²C Voltage: 12-24 V DC Power consumption: 2,4 Dimensions: ca. 40 x 50 mm CPU-Platine, ca. 23 x 35 mm Sensorplatine
