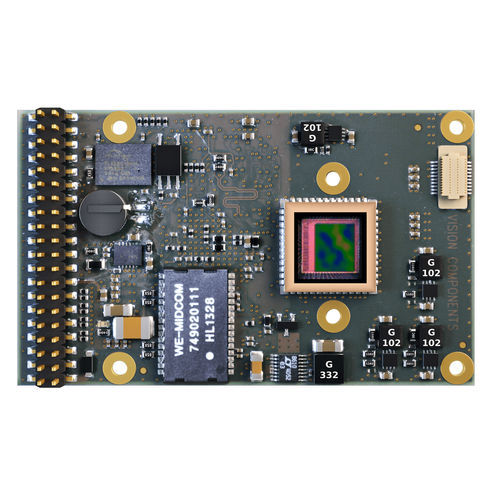

Board camera VCSBC nano Z series

digitalindustrialfor embedded devices

Our ultra-compact board cameras, only 40 x 65 mm small. The image sensor is integrated directly into the design of the board. This provides the embedded vision system for your application as a single compact component. Sensor: 1/4" CMOS Sensor, Teledyne e2v Resolution (Pixel): 736 x 480 FPS: 134 Order from: Send request! Pixel Size: 4.5(H) µm x 4.5(V) µm Shutter: High-Speed: 34 µs + in Stufen von 34 µs. Low-Speed: bis zu 2 s einstellbare Integrationszeit Integration: Global Shutter Acquisition: Programmkontrollierter oder externer High-Speed Trigger, Vollbild & partieller Scan (ROI), Aufnahme jitterfrei Processor: Dual-Core ARM Cortex-A9 mit 2 x 866 MHz und integriertem FPGA RAM: 512 MB DDR-SDRAM Flash-EPROM: 16 GB flash memory (nicht flüchtiger Speicher) Dig. I/Os: 12 programmierbare Ein-/Ausgänge Trigger I/Os: 1 Trigger Eingang (opto-decoupled) und 1 Blitztigger Ausgang (open collector) Interfaces: Ethernet 1Gbit, serielle RS232, I²C Voltage: 10-30 V DC Power consumption: 3 W Dimensions: ca. 40 mm x 65 mm
