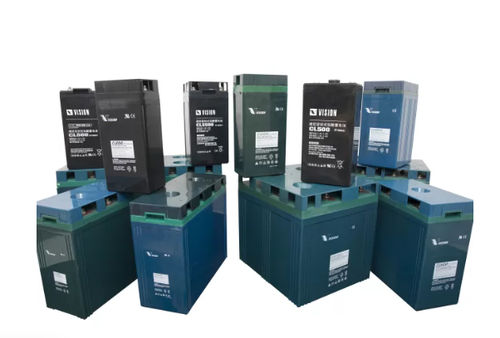

Lead-carbon battery C series12 Vsolar
Add to favorites
Compare this product
Characteristics
- Type
- lead-carbon
- Voltage
- 12 V
- Applications
- solar
- Load capacity
100 Ah, 200 Ah, 300 Ah, 400 Ah
- Length / diameter
171 mm, 211 mm, 330 mm, 522 mm
(6.7 in, 8.3 in, 13 in, 20.6 in)- Width
151 mm, 171 mm, 176 mm, 238 mm
(5.94 in, 6.73 in, 6.93 in, 9.37 in)- Height
215 mm, 218 mm, 329 mm, 330 mm
(8.5 in, 8.6 in, 13 in, 13 in)- Weight
19.7 kg, 28 kg, 30 kg, 62.5 kg
(43.43 lb, 61.73 lb, 66.14 lb, 137.79 lb)
Description
Lead carbon batteries of this series use a new design of grids, active substance, shell, and electrolyte based on the advanced lead-acid battery production technology. These batteries support deep cycles and have a long service life, and are one of optimal solutions for the energy storage industry.
Characteristics
1.A designed service life of 10 years
2.Excellent cycle performance in unsaturated state of charge
3.A long service life attributed to the excellent cycle performance
4.Easy installation and maintenance
Applications
New energy systems, such as solar energy, wind energy, and wind-solar hybrid systems
Peak cut systems for power grids
Frequency modulation and load tracking systems
Smart grid and micro grid systems
Power storage systems in areas without mains power supply or with poor-performing power grids
