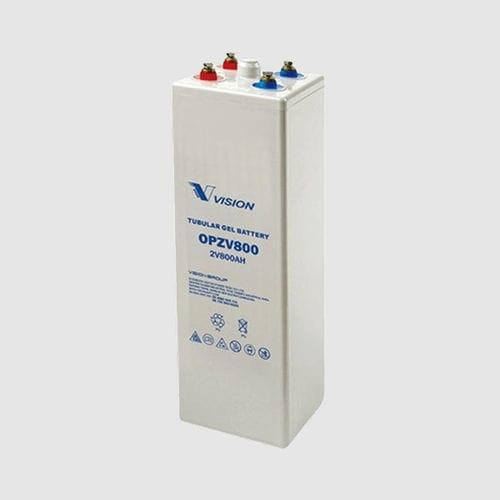

OPzV gel battery V series
2 Vhigh-temperaturefor telecommunications equipment

OPzV gel battery - V series - Vision Group - 2 V / high-temperature / for telecommunications equipment
OPzV gel battery - V series - Vision Group - 2 V / high-temperature / for telecommunications equipment
OPzV gel battery - V series - Vision Group - 2 V / high-temperature / for telecommunications equipment - image - 2
Add to favorites
Compare this product

Characteristics

Type
OPzV gel
Voltage
2 V
Applications
for telecommunications equipment, high-temperature
Load capacity

Min.: 200 Ah

Max.: 3,000 Ah

Length / diameter

Min.: 103 mm
(4.1 in)

Max.: 576 mm
(22.7 in)

Width

206 mm, 210 mm, 212 mm
(8.11 in, 8.27 in, 8.35 in)

Height

Min.: 356 mm
(14 in)

Max.: 770 mm
(30 in)

Weight

Min.: 20 kg
(44.09 lb)

Max.: 228 kg
(502.65 lb)

Description

Featuring long-life tubular plate design and gel electrolyte, the OPzV series offers excellent cycle and float life, especially suitable for outdoor and high-temperature applications. With cast-tubular plates, PVC separators, and gel technology, it minimizes grid corrosion, material softening, and acid stratification, achieving a design float life of up to 20 years. It is ideal for telecom base stations, renewable energy systems, and other demanding grid environments. Application Scenarios: Core communication hubs and base stations requiring long-term float backup Deep-cycle energy storage, including solar, wind, and hybrid systems in off-grid or poor grid conditions Key Features Long-life tubular plates Cast-tubular positive plates extend both cycle and float life. Gel electrolyte for high temperature Stable performance in outdoor and hot environments. Excellent thermal stability PVC separators and nano-silica gel reduce grid corrosion and acid stratification. Good low-temperature performance Resistant to freezing, reliable even in winter. Ultra-long design life: Float life up to 20 years, ideal for long-term backup and energy storage.
