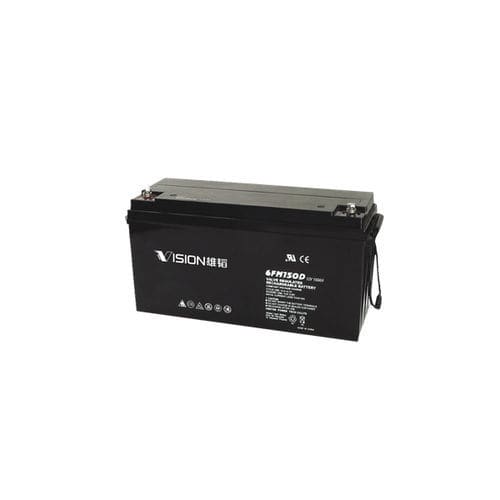

Lead-acid battery FM series

12 V6 Vfor emergency lighting

Overview
Designed for cyclic and deep-discharge applications, this battery series uses advanced alloy and paste formulations to support extended charge/discharge cycles. The cells employ AGM VRLA technology with a sealed, maintenance-free construction and can be installed in any orientation.

Application Scenarios

• Telecom and power equipment
• Emergency lighting and fire-safety systems
• Security systems, office IT equipment
• UPS and backup power devices
• Portable power units, robotics and control systems

Key Features

• High cycle life — plate design and materials optimized for frequent deep cycling
• Enhanced safety — large thermal capacity reduces risk of thermal runaway and limits electrolyte drying
• High energy density — maximizes stored energy in constrained spaces
• Strong deep-discharge tolerance — maintains stable performance under repeated deep cycles
• Reliable long-duration discharge — consistent power output for extended operation
• Dual-purpose use — applicable for both backup power and energy storage systems

Industry Applications

• UPS & AIDC battery solutions
• Telecom battery solutions (site backup, base stations)

Specification
Model | Nominal Voltage (V) | Capacity (AH) | L (mm) | W (mm) | H (mm) | Total Height (mm) | Reference Weight (KG) | Internal Resistance (mΩ) | Terminal Type
3FM180D-X | 6 | C10, 180 | 306 | 168 | 220 | 225 | 28.6±3% | ≤2.5 | F12
3FM200D-X | 6 | C20, 200 | 240 | 185 | 275 | 275 | 32.5±3% | ≤2 | F12
6FM55D-X | 12 | C20, 55 | 239 | 132 | 205 | 210 | 17.3±3% | ≤7.2 | F11
6FM65D-X | 12 | C20, 65 | 350 | 167 | 179 | 179 | 23.4±3% | ≤6.8 | F11
6FM75D-X | 12 | C20, 75 | 258 | 166 | 206 | 215 | 23.5±3% | ≤6.6 | F11/F12
6FM80D-X | 12 | C20, 75.6 | 350 | 167 | 179 | 179 | 23.5±3% | ≤6.5 | F11
6FM100D-X | 12 | C20, 100 | 330 | 171 | 214 | 222 | 32±3% | ≤5.7 | F11/F12
6FM134D-X | 12 | C20, 134 | 341 | 172 | 280 | 288 | 40±3% | ≤5 | F15
6FM120D-X | 12 | C20, 120 | 410 | 176 | 224 | 224 | 38±3% | ≤5.3 | F12
6FM150D-X | 12 | C20, 150 | 482 | 170 | 240 | 240 | 48.4±3% | ≤4.5 | F12
6FM200D-X | 12 | C20, 200 | 522 | 238 | 218 | 223 | 65±3% | ≤3.5 | F12
6FM230D-X | 12 | C20, 230 | 520 | 269 | 203 | 208 | 72.6±3% | ≤2.8 | F12

Technical characteristics / specifications

• Battery type: AGM VRLA (sealed, maintenance-free)
• Designed for cyclic/deep-discharge use with advanced alloy and paste formulations
• Installation: can be mounted in any orientation
• Nominal voltages: 6V and 12V options
• Capacity range (examples in table): C20 55 Ah to C20 230 Ah
• Model examples: 3FM180D-X, 3FM200D-X, 6FM55D-X, 6FM65D-X, 6FM75D-X, 6FM80D-X, 6FM100D-X, 6FM120D-X, 6FM134D-X, 6FM150D-X, 6FM200D-X, 6FM230D-X
• Terminal types: F11, F12, F15 (model-dependent)
• Internal resistance range (per table): approx. ≤7.2 mΩ to ≤2.8 mΩ depending on model
• Reference weights: about 17.3 kg up to ~72.6 kg depending on model
• Dimensions vary by model (L, W, H values given in specification table)
