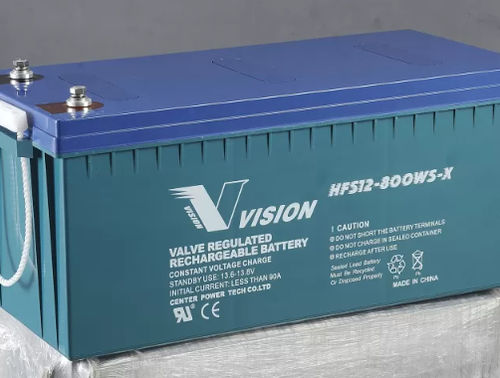

Valve-regulated battery HFS series
12 Vfor UPSindustrial

Valve-regulated battery - HFS series - Vision Group - 12 V / for UPS / industrial
Valve-regulated battery - HFS series - Vision Group - 12 V / for UPS / industrial

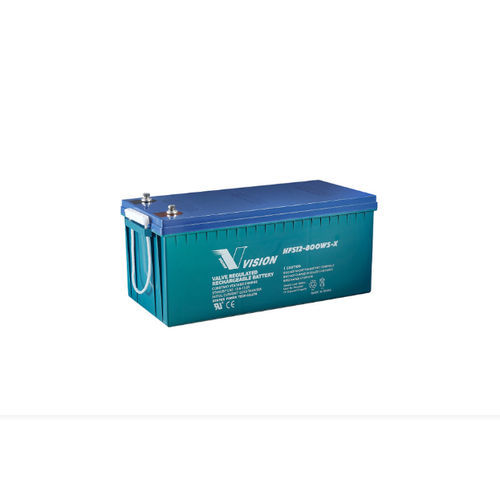

Valve-regulated battery - HFS series - Vision Group - 12 V / for UPS / industrial - image - 2
Add to favorites
Compare this product

Characteristics

Type
valve-regulated
Voltage
12 V
Applications
industrial, for telecommunications equipment, for UPS, for medical applications, for marine applications
Other characteristics
high density energy
Length / diameter

Min.: 165 mm
(6.5 in)

Max.: 526 mm
(20.7 in)

Width

Min.: 125 mm
(4.92 in)

Max.: 238 mm
(9.37 in)

Height

Min.: 175 mm
(7 in)

Max.: 279 mm
(11 in)

Weight

Min.: 9.6 kg
(21.16 lb)

Max.: 69 kg
(152.12 lb)

Description

The HFS Series is a high-power, high-energy-density AGM valve-regulated sealed lead-acid (VRLA) battery designed for short-duration, high-power discharge applications. With excellent performance, it is ideal for data centers, large UPS systems, telecom equipment, and similar scenarios. Application Scenarios: Data centers and computing power centers Key Features High-Efficiency Welding & Sealing Technology Advanced processes such as cast welding, through-the-wall welding, and heat sealing enhance structural strength and airtightness while reducing production costs and improving cost-performance. Excellent Electrical Performance With low self-discharge and internal resistance, the battery offers strong charge acceptance and quick capacity recovery even after long storage, supporting frequent and rapid charge-discharge cycles. High-Strength Flame-Retardant Casing Made with durable, flame-retardant ABS material, the casing provides superior structural integrity and fire resistance, ensuring safety in harsh environments. Long Design Life Designed for a service life of over 12 years at 25°C (77℉), making it ideal for high-reliability applications and significantly reducing maintenance and operational costs. High-Performance AGM Separator Utilizes specially developed AGM (Absorbent Glass Mat) separators for high-power use, offering excellent electrolyte retention and conductivity, and capable of withstanding short-duration high-current discharges.

Catalogs

No catalogs are available for this product.

See all of Vision Group‘s catalogs
