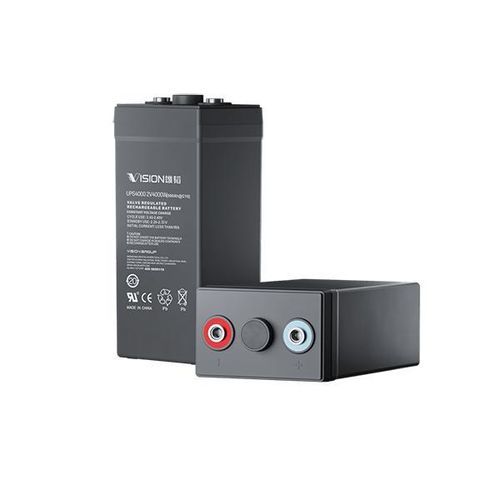

VRLA battery 2V

2 Vfor UPSindustrial

Overview
2V High-Power UPS Series are 2V VRLA (AGM) lead-acid batteries engineered for short-duration, high-current discharge (3–15 minutes). They incorporate military-grade instantaneous discharge technology, optimized grid alloys and a high-power paste to deliver stable, high-density energy for emergency backup applications.

Application Scenarios

• Data centers requiring short emergency power bursts
• Uninterruptible Power Supply (UPS) systems
• Telecommunications base stations and shelters
• Power conversion and switchgear systems
• Industrial backup for critical processes

Key Features

• 3–15 Minute Golden Backup — Designed for reliable high-current output during short emergency discharge periods.
• Fast Charge & Low Self-Discharge — Optimized for fast recharge with average monthly capacity loss <3% and low internal resistance for improved charge acceptance.
• Flame-Retardant Housing — High-strength flame-retardant ABS enclosure for enhanced safety and mechanical protection.
• Wide-Temperature Performance — Float life up to 15 years at 25°C with stable operation across a broad temperature range.
• High Instantaneous Power — Military-grade AGM separators and optimized lead paste enable large instantaneous loads.
• Stable Energy Delivery — High energy density and efficient discharge characteristic suitable for precision and critical equipment.

Industry Applications

• UPS & AIDC battery systems
• Telecom battery solutions
• Motive power for short-duration discharge needs
• Energy storage and emergency backup systems

Technical Specifications
Model | Rated Capacity (C10 1.80V@25°C, Ah) | [email protected] Power (W/Cell) | [email protected] Power (W/Cell) | L (mm) | W (mm) | H (mm) | Weight (kg)
UPS2000 | 260 | 2000 | 1200 | 172 | 111 | 329 | 15.3
UPS2800 | 380 | 2800 | 1700 | 171 | 151 | 329 | 22.5
UPS4000 | 500 | 4000 | 2500 | 175 | 210 | 329 | 31.0

Specifications

• Designed for short-duration high-current discharge (3–15 minute backup).
• Rated capacities: 260 Ah (UPS2000), 380 Ah (UPS2800), 500 Ah (UPS4000) at C10 1.80V@25°C.
• High instantaneous power capability up to 4000 W/cell (5 min) for UPS4000.
• Low self-discharge: average monthly capacity drop <3%.
• Float life up to 15 years at 25°C.
• High-strength flame-retardant ABS housing for improved safety.
• Military-grade AGM separators and optimized lead paste for enhanced charge acceptance and high-current discharge.
