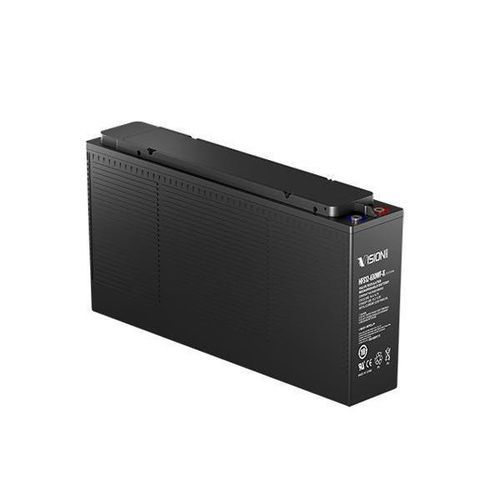

Lead-acid battery HFS

for UPSindustrialfor telecommunications equipment

Overview
The VISION HFS front-terminal battery series is a VRLA (valve-regulated lead-acid) portfolio engineered for high-power UPS backup and critical power applications. Incorporating high-temperature cured plates, CAD-designed grids and a proprietary lead paste with carbon additive, the series provides high energy density and sustained discharge performance for short-duration, high-power backup scenarios.

Application Scenarios

• Data centers
• UPS backup power systems
• Telecommunications equipment
• Power distribution systems
• Industrial backup applications

Key Features

• Front-terminal layout for space-efficient installation and simplified cabling; supports modular system assembly.
• Maintenance-free VRLA design with effective heat dissipation to support extended float life.
• Flame-retardant ABS casing and multi-level terminal sealing to minimize risk of electrolyte leakage.
• Advanced radial grid and carbon additive formulation for strong high-current discharge performance (suitable for 1-hour float charge backup).
• Corrosion-resistant alloys and high-strength AGM separators for reliable operation at elevated temperatures.
• Centralized venting to control gas/aerosol escape and facilitate safe maintenance.
• Automated manufacturing process ensures high unit-to-unit consistency for large-scale deployments.
• Robust mechanical design to withstand vibration and shocks during transport and operation.

Industry Applications

• UPS & AIDC battery systems
• Telecommunications battery systems
• Motive power applications
• Energy storage systems

Technical Specification
Model | C10 1.80V@20℃ (Ah) | [email protected] (W/Cell) | L (mm) | W (mm) | H (mm) | Total Height (mm) | Weight (KG) ±3%
HFS12-380WF-X | 105 | 380 | 395 | 110 | 286 | 293 | 33.7
HFS12-440WF-X | 110 | 440 | 395 | 110 | 286 | 293 | 36.7
HFS12-510WF-X | 145 | 510 | 552 | 110 | 288 | 295 | 47.0
HFS12-600WF-X | 165 | 600 | 552 | 110 | 288 | 295 | 51.5
HFS12-630WF-X | 170 | 630 | 560 | 110 | 317 | 317 | 56.5
HFS12-650WF-X | 190 | 650 | 560 | 125 | 317 | 317 | 59.2
HFS12-700WF-X | 200 | 700 | 560 | 125 | 317 | 317 | 60.7

Technical specifications

• Commercial name: HFS Front Terminal High Power Series (VISION)
• Battery type: VRLA front-terminal high-power lead-acid (HFS series)
• Float life: up to 12 years (advanced design)
• Operating temperature range: -15℃ to 50℃
• High-power discharge capability suitable for 1-hour float charge backup scenarios
• Construction: high-temperature cured plates, CAD-designed grids, proprietary lead paste, radial grid with carbon additive
• Safety: centralized venting, ABS flame-retardant casing, multi-level terminal sealing to prevent leakage
• Mechanical: shock and vibration resistant for transport and harsh environments
• Manufacturing: fully automated production for consistent performance across units
