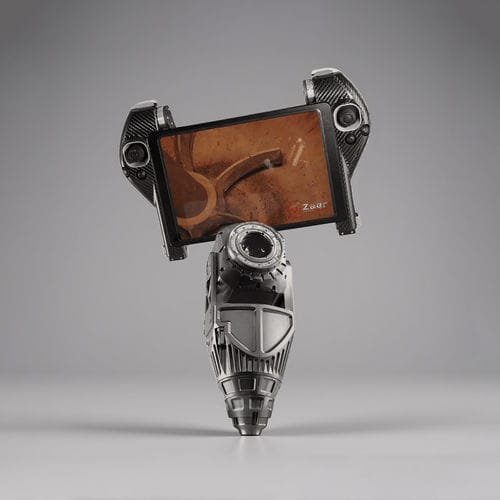

Rigid videoscope INVIZx98 Ti/45

for turbine engine inspectionfor foodfor pipes

Overview
The INVIZx98 is an industrial visual inspection solution engineered for demanding environments. It provides native uncompressed Full HD (1920×1080) capture, 10× optical zoom, a Grade 5 titanium housing and reinforced waterproofing for inspections of tanks, piping and other confined spaces.

Standard kit and components

• INVIZx98 Ti/45: titanium Full HD camera head.
• VUnit: 10.1" IPS Full HD touchscreen control unit with VUapp.
• VUcase: rugged all-in-one case for transport, power and mobile operation (lithium battery, mains power).

Summary
Available model: INVIZx98 Ti/45
Lead time: approx. 6 weeks
Key features: Full HD with 10× Optical Zoom | Grade 5 Titanium housing | VUnit | IP68 4.5 bar (45 m)

Main functions

• Native Full HD 1920×1080 imaging (SONY IMX® sensor) for bright, detailed results.
• 10× optical zoom + 4× digital zoom for close-up views without loss of optical detail.
• Motorized head: continuous 360° rotation and ±165° tilt with motorized control (pan/tilt/zoom).
• Integrated LED lighting (two channels) adjustable up to 1,800–2,000 lumens depending on configuration, selectable light fields (25° and 100°) and independent channel control.
• Waterproofing and durability: Grade 5 titanium head, corrosion and solvent resistance for aggressive environments; IP68 4.5 bar (45 m) — optional extension to 60 m.
• VUnit: 10.1" IPS 1920×1200 touchscreen, VUapp (viZaar OS), photo/video recording to internal SSD or USB, USB and HDMI connectivity, ergonomic controls (joysticks, wheel), DualCapture recording (HQ photo during video).
• VUcase: rugged case with custom internal layout, IP53 when lying flat, mains and battery power (compatible with STIHL® lithium batteries for up to 8 h autonomy, automatic mains/battery switching).
• Documentation: timestamped capture and Full HD traceability (high-resolution PNG photos and MP4 videos) for reports and audits.

Warranty & delivery

• Manufacturer warranty: 1 year.
• Delivery: Worldwide.

Specifications

• Commercial model: INVIZx98 Ti/45
• Camera resolution: native Full HD 1920 × 1080 (SONY IMX® sensor)
• Zoom: 10× optical, 4× digital
• Minimum focus: ~10 mm
• Pan/tilt: continuous 360° pan, ±165° tilt (motorized)
• Lighting: 2-channel LEDs, 7 W each, 25° and 100° fields, combined power up to 1,800–2,000 lumens (boost depending on configuration)
• Head housing: Grade 5 Titanium (corrosion and solvent resistant)
• Ingress protection: IP68 / 4.5 bar (45 m); optional extension to 60 m
• Operating temperature: 0 °C to 48 °C (cooling option for extension to 80 °C)
• Head diameter: approximately 97.8 mm
• Control unit VUnit: 10.1" IPS 1920×1200 touchscreen, VUapp, SSD/USB recording, USB & HDMI ports, physical controls (joysticks, wheel)
• Mobile power: STIHL® compatible lithium battery (up to 8 h depending on configuration) + automatic mains/battery switch
• Capture functions: MP4 video + high-resolution PNG photos (DualCapture)
• Case materials: HPX polymer, custom foam inserts, IP53 rating (case lying flat)
• Available accessories: carbon probes, centering device / swivel tripod, soft cable pouch, mains cable extensions (3/15/30/50/80 m), etc.
