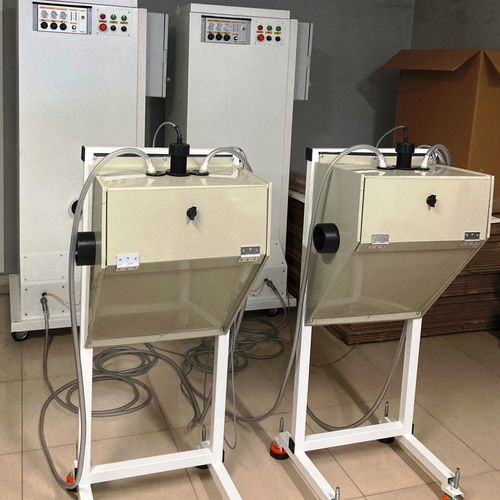

Powder coating machine with electrostatic gun VMCABwith two electrostatic gunsfor cablesautomatic
Add to favorites
Compare this product
Characteristics
- Options
- with electrostatic gun, with two electrostatic guns, for cables
- Operational mode
- automatic
Description
CABLE POWDERING MACHINE
External Dimensions : L750 W1200 H1825mm
Input : 220V 50 Hz
Installed power : 1 KW
Extraction fan : 3.000 m³/h 0,75KW
Vibration : 0,15KW 220V
Compressed air : 6-10 bar
Air consumption : 300 lt/min
Filtration : 320x300mm polyester filter
Filter cleaning : Automatic
Powder recycling : Vibrated sieve and injector
Coating method : Electrostatic
Electrode qty : 2 set
CABLE PASSAGE
Size : 100 mm diameter
Height from ground : 1.000 mm (avg.)
Cable insulation material : PVC, PE, XLPE
Cable size to be powdered : 5–70 mm
HIGH VOLTAGE UNIT
Input voltage : 14V 16kHZ
Output voltage : 100 kV
Max. current : 120 µa
Polarization : Negative
Cable powder coating machine is CE certificated and conforms to the European Norms.
