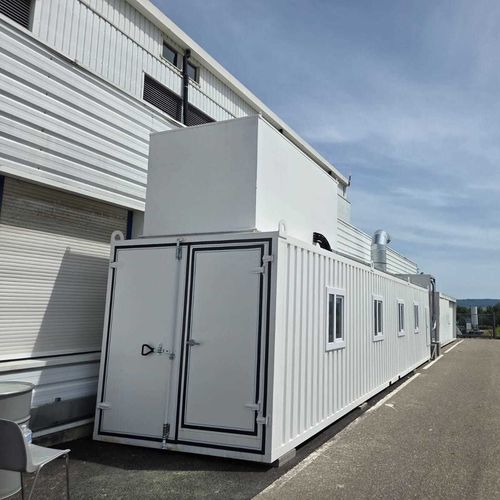

Closed circuit paint booth

for aeronautical applicationsfor metal fabricationfor parts

Overview
The container spray booth is a standalone paint room designed for manual painting with sidedraft ventilation and a dry cardboard filtration system. It is suitable for placement in workshops or yards and for small-to-medium production environments.

Construction and Materials
The cabinet body is fabricated from sheet metal, fully waterproof welded and finished with spray paint for outdoor durability. The structure is heat insulated to support consistent ambient conditions during painting operations.

Main Components

• Dry cardboard filter system for particle capture
• Low-noise extraction fan
• Air inlet plenum
• Side wall window
• Emergency door with panic bar
• Electrical control panel and cabling
• ATEX compliant lighting system

Features
The cardboard filter combined with the low-noise fan ensures efficient paint extraction and dust control. An optional ceiling filter plenum can convert the booth to positive pressurisation for higher finish quality when required.

Applications
Designed for manual paint application; also suitable for sanding and grinding operations where a controlled dust environment is needed.

Sizes and Customization
Standard designs match 20 ft or 40 ft sea shipment container dimensions. Layouts, internal fittings and sizes can be customized to customer specifications.

Certification
Built to meet CE requirements and conform to applicable European norms.

Technical specifications

• Application: Manual paint application; suitable for sanding and grinding
• Ventilation: Sidedraft ventilation
• Filtration: Dry cardboard filter system; optional ceiling filter plenum for positive pressurisation; door filter for dust-free access
• Body: Sheet metal construction, waterproof welded, epoxy spray painted
• Insulation: Heat insulated body
• Extraction: Low-noise extraction fan
• Accessories: Side window, air inlet plenum, emergency door with panic bar
• Electrical: Control panel and cabling included
• Lighting: ATEX lighting system
• Standard sizes: 20 ft and 40 ft container dimensions; customizable
• Certification: CE certified, conforms to European norms
