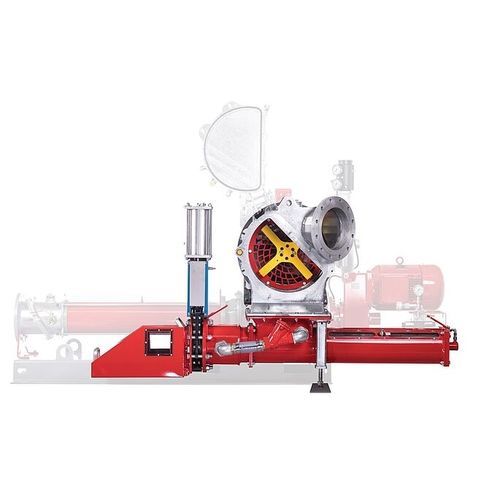

Scrap metal removal system DRS

debris

Overview
The Debris Removal System (DRS) ejects separated heavy foreign matter (stones, metal parts, ceramics, etc.) during ongoing operation with minimal loss of medium (≈15 L). It reduces removal time significantly (around one sixth compared with conventional procedures) and can be retrofitted and partially or fully automated depending on selected options.

Key benefits

• Removal of separated heavy material without stopping or opening the feeder or separator
• Reduction of required time and labour by up to ~80%
• Only approx. 15 L of medium discharged per removal (~4 US gal)
• Easy retrofitting to existing PreMix / heavy-material separators

Operation / Technical features

• Piston and slide-valve mechanism discharges separated heavy material while the separator remains in operation
• Bypass/check valve returns trapped medium to the machine to minimise losses
• Free passage 180 mm enables reliable discharge of larger heavy items
• Low-maintenance, robust construction designed for industrial operation

Options & modes

• Manual basic: slide valve operated by handwheel; DRS piston driven by manual pump
• Manual (hydraulic piston): slide valve manually operated; piston hydraulically driven (operator-monitored)
• Automatic: slide valve and piston hydraulically operated and monitored by a control; only the catcher requires manual emptying
• Compact hydraulic unit available for space-saving installation
• Performance Control Unit (PCU) option for PreMix or RotaCut RCX monitoring; separate PCU for DRS also available

Applications
The DRS is suitable for biogas plants, solid-matter feeders, digesters and industrial processes where heavy foreign matter accumulates (e.g. slurry, manure, organic waste) and where stopping the process for removal is undesirable or costly. It optimises continuous feeding and reduces the risk of downstream blockages and equipment damage.

Technical specifications

• Free passage: 180 mm
• Discharged medium per removal: ≈15 L (~4 US gal)
• Operation modes: manual (hand pump), manual with hydraulic piston, automatic (hydraulic + control)
• Maintenance: low-maintenance, robust design
• Retrofit compatibility: designed for integration with PreMix / heavy-material separators and PCU
