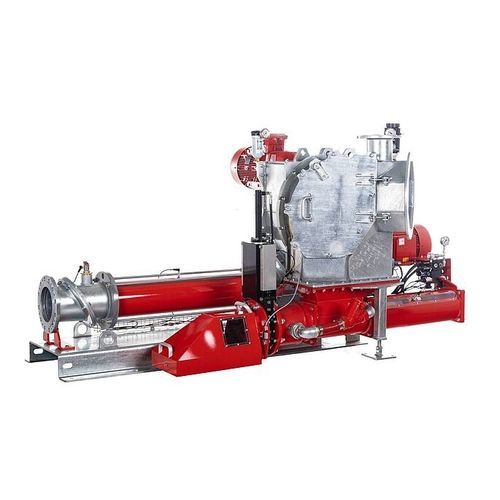

Rotary feeder PreMix®

augerfor foodfor bulk materials

Overview
The PreMix® is a universal 4-in-1 solid matter feeder designed to prepare a wide variety of biomass and organic wastes into a homogeneous, bacteria-compatible suspension. The system combines heavy-material separation, coarse crushing, fiber cutting and positive-displacement pumping in a compact, closed unit suitable for installation even in closed rooms.

Key benefits

• Mashes a wide variety of biomass to a homogeneous organic suspension
• Separates heavy material and shreds solids before the pump
• Compact dimensions for easy integration and retrofitting
• One PreMix can feed several digesters
• Easy and quick service on site

PreMix® Next Generation
The next-generation PreMix improves power, efficiency and durability. Main developments include:

• ACCplus blade adjustment system with automatic, dynamic blade/contact control adapting cutting performance to the substrate
• HiCone progressive cavity pump for increased service life and reduced energy consumption
• Enhanced automation via a sophisticated control system to keep the unit operating in the optimum range
• Completely closed design allowing use in closed rooms

Models

• PreMix RCX-58G — The compact, versatile standard model for variable solid matter feeding (suitable for organic waste, dry chicken manure, grass silage, food waste).
• PreMix RCX-68G — The high-performance variant for intensive preparation and higher throughput, for large biogas plants or high material flow rates.

Features

• Unique concept: heavy material is separated and long fibers are cut before the pump, protecting the pump and extending service life
• Compact design: direct connection between RotaCut and pump suction housing, four preparation steps in minimal footprint with space for service and maintenance
• Service-friendly: routine maintenance for the RotaCut RCX and CC-series pump can be performed on site without disassembling inlet/outlet lines
• Housing: steel construction with torsionally stiff design; hot-dip galvanization for corrosion protection
• Sturdy drive: helical-shaft mounted geared motor directly on the drive shaft (no extra coupling required)
• Protected cardan shaft: large cardan shaft with two joints and a protective sleeve that does not need disassembly for rotor changes
• Blade adjustment with ACCplus: permanent direct contact between blades and screen, online blade condition monitoring and display integration

Options

• Debris Removal System (DRS) — removes separated heavy material during operation with minimal medium loss (approx. 15 L) and reduces maintenance work
• Multiple-stage pump geometry — optional two-stage progressive cavity pump to increase permissible differential pressure and extend service life with abrasive media
• PCU control with PROFINet — Performance Control Unit available with PROFINet connection on request
• Touch display — optional wide-screen touch display integrated in the control cabinet door for local overview and settings
• Complete control — integrated hardware and software options including sensors available from one source
• Remote maintenance — PCUs are prepared for remote access for updates and support

Application areas
PreMix is suited for biogas plant feeding and processing a wide range of input materials such as pasty food waste, bulky crops, organic waste, dry poultry manure and grass silage. Typical installation includes feeding via screw conveyor, separation of heavy material, crushing of coarse particles and cutting of fibrous matter before pumping into digesters. A single PreMix can supply multiple digesters.

Characteristics / technical specifications

• Product: PreMix® solid matter feeder
• Preparation steps: heavy-material separation, coarse crushing, fiber cutting, positive-displacement pumping
• Integrated cutter: RotaCut RCX series with ACCplus blade adjustment
• Integrated pump: CC series progressive cavity pump (HiCone option available)
• Closed system: designed for use in closed rooms
• Drive power: approx. 20 to 50 kW depending on model and configuration
• Delivery rates: from about 20 to over 100 m³/h depending on model and medium
• Debris Removal System (DRS) option: removes heavy material during operation with ~15 L medium loss
• Control and automation: Vogelsang PCU available; PROFINet, touch display and remote maintenance options
• Construction: steel housing, hot-dip galvanised components
