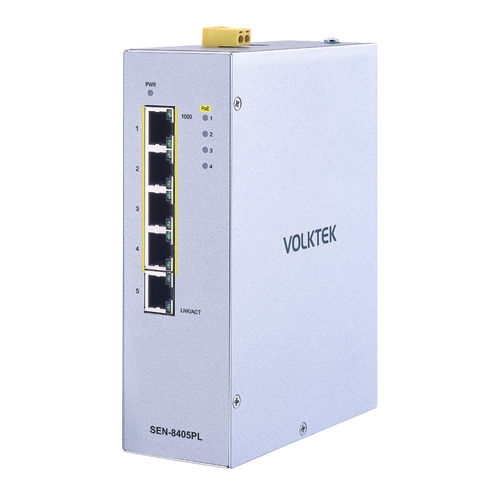

Managed ethernet switch SEN-8405PL-24V

smart5 portslayer 2

Product Highlights: 4 x 10/100/1000 PoE+ ports - 30 Watts max. output power/port 1 x 10/100/1000 RJ45 for industrial controllers with Gigabit speeds Optimizes network performance with Flow Control and QoS A Wizard for three-minute and three-step installation guided process Wide input power range (24V to 57V) for factory floor and typical surveillance applications Operating temperature -10°C~60°C (14°F~140°F) and metal housing Overview SEN-8405PL-24V is a Lite managed 4-port 10/100/1000 PoE+ downlink and 1-port 10/100/1000 RJ45 downlink industrial switch designed for indoor surveillance and internet access points applications with real-time network monitoring. This PoE+ switch features up to 4-port PSE (power sourcing equipment) ports to control all the remote powered devices (PDs) with the help of automated features controlled from the web browser. Additionally, it offers auto-negotiation on all its ports and supports Modbus TCP to aggregate devices like HMIs and legacy devices easily.With a variety of management tools for configuration, it takes only three hours for technicians to learn how to use this equipment. The Wizard reduces installation to three steps and three minutes. The monitoring and management platform, Topology Map and Dashboard, give useful information in real-time to help users diagnose the network and troubleshoot without on-site technicians at all times. Rate limitation and QoS (Quality of Service) allow network optimization.This switch is built with industrial-grade components, enclosed in metal to protect the device from tools and hazards. The wide input power range from 24V to 57V enables the device to operate in factory ecosystems and other commercial/residential security applications without extra power outlet installation needed. Designed to withstand vibration, shock, free fall, and temperatures ranging from -10°C~60°C (14°F~140°F) it suits hardened application environments without airconditioning. To ensure reliability the redundant power supply and alarm relay contact on the terminal block ensures non-stop operations and issues alerts if power fails. Features LAMUNGAN - Monitoring and Management Platform: Lamungan is Volktek’s embedded monitoring and management platform, a user-friendly interface consisting of a Wizard, a Topology Map, and a Dashboard for users to achieve more in less time to save resources and increase efficiency. It aggregates four tools concerning device deployment and installation, network performance, device monitoring, and network configuration. The Wizard - Three-step installation in three minutes: When a new switch is connected the Wizard helps technicians to set up network access, security, and login information. This allows to quickly finish the installation of all devices to later continue with remote configuration once the network connection is settled. For users that are not familiarized with these types of devices, the Wizard can solve a lot of trouble. Topology Map - a Smart and Interactive Network at Glance: For easy problem finding and troubleshooting, a bird-eye view of the network gives OT and IT users a comprehensive understanding. The Ethernet switch uses smart technology to discover third-party devices, their interface, and the link path status in a tri-color code (green, amber, and red). Furthermore, users can set up the map with customized icons and background images. Dashboard - Network Performance Visualization: The dashboard lets users visualize switch CPU performance and data transmission rates in a simple interface to quickly detect device and network issues and give fast assistance. Manages Remote PDs from the Control Room: Compliant with PoE+ (IEEE 802.3 af/at) standard, this device can provide up to 30W/port to all connected PDs but limits power consumption to only enough for the devices to work protecting them from sudden power spikes. The switch management interface uses PD control features, like PD-alive check and PoE scheduling, to control remote devices from a central location. PD alive Check - check the live active status of the device and reboots devices when needed, reducing expensive trips to remote locations to save valuable time. PD scheduling - Ethernet switches can schedule the time they supply power to PDs to reduce power consumption and allocate enough power to important applications to save operational costs. Third-Party Device Compatibility and Speed Adaptability: The multi-rate ports of this device are enabled to transmit data at different Ethernet speeds of 10/100/1000 Mbps on copper and adapt to the Ethernet speed of third-party devices based on their requirements. When legacy devices are connected to the switch, it auto-negotiates with the device, reducing the need for additional adaptors to adjust to a tight budget. Optimized Network Performance: The transmission of data to the control center or to other devices in real-time is crucial and assured with the help of the QoS (Quality of Service) and Flow Control features, the switch prioritizes data transmission and improves performance. Power Failure Protection: Redundant Power Input & Relay Output Alarm: To guarantee power runs continuously the switch is designed to be simultaneously connected to two power supplies and an alarm. If the primary power supply stops working the switch will start using the alternative power supply automatically and trigger a notification alarm to notify technicians in the event of power failure. Resistant to Extreme Environments: The device is built with Industrial grade components, tested in-house, and certified for reliable operation in harsh environmental conditions by international market safety organizations like CE, FCC, and ROHS. Strong tolerance to harsh temperatures (-10°C to 60°C / 14°F~140°F) and resistance to interference makes this device infallible in hardened environments around multiple types of machinery. Specifications Standards: IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX), IEEE 802.3ab (1000BASE-T), IEEE 802.3 (Nway Auto-negotiation), IEEE 802.3x (Flow Control), IEEE 802.3af (Power over Ethernet), IEEE 802.3at (Power over Ethernet Plus), IEEE 802.3az (Energy Efficient Ethernet), IEEE 802.1AB (LLDP), IEEE 802.1D (STP), IEEE 802.1w (RSTP), IEEE 802.1p (Class of Service), IEEE 802.1Q (VLAN tagging), IEEE 802.1X (Port Authentication) Interface: Ports: 4 x 10/100/1000BASE-T (PoE+ RJ45), 1 x 10/100/1000BASE-T (RJ45) LED Panel: PWR, PoE, 1000, LNK/ACT Power: Input Voltage: Terminal block (2 pins): 24-57V DC; Mini-DIN (4 pins): 24-57V DC Connection: Terminal Block, Mini-DIN Power Consumption: System: 14W; PoE Power Budget: 120W Mechanical and Environment: Housing: Metal (IP40 Protection) Mounting: DIN-Rail Operating Temperature: -10°C-60°C (14°F-140°F) Storage Temperature: -40°C~85°C (-40°F~185°F) Operating Humidity: 5 to 95% RH (non-condensing) Storage Humidity: 5 to 95% RH (non-condensing) Weight: 465 g (1.03 lb) Dimension (WxHxD): 50 x 160 x 120 mm (1.97 x 6.36 x 4.72 in) Ordering Information ModelDescriptionSEN-8405PL-24VLite Managed 4 x 10/100/1000 PoE+ & 1 x 10/100/1000 RJ45 Switch *Specifications subject to change without prior notice.
