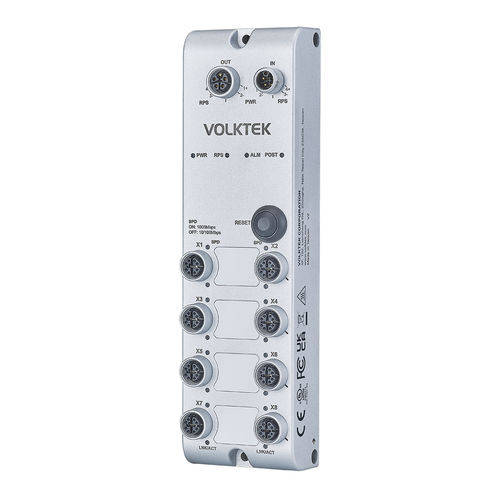

Managed switch 8075-8GT-M12

8 portslayer 3layer 2

Product Highlights

• IP67 metal housing for protection in harsh industrial environments; rated for extreme shock and vibration
• Gigabit M12 connectivity: 8 x 10/100/1000 X-coded M12 ports with 16 Gbps switching fabric
• Traffic control and security via IGMP Snooping and L2/L3/L4 ACLs
• Lite managed features: SNMP, Modbus TCP and visual Topology Map for simplified network oversight
• Wide operating temperature: -40°C to 70°C (-40°F to 158°F)

Overview
The 8075-8GT-M12 Series is a Lite Managed IP67 industrial switch designed for deployment in heavy industrial and outdoor automation systems. Built with a metal IP67 enclosure and rugged components, it withstands extreme vibration and shock while operating across a wide temperature range. Dual redundant power inputs increase network resilience and uptime. The switch integrates essential network functions such as auto-negotiation, rate limitation and QoS to ensure stable performance in compact form factor.

Features

• SNMP remote management compatible with third-party NMS for monitoring and configuration
• IGMP Snooping to reduce unnecessary multicast traffic on the LAN
• ACL (L2/L3/L4) to filter and secure traffic based on MAC, IP and port numbers
• Topology Map for schematic visualization of switch interconnections to aid planning and troubleshooting

Specifications
Standards:
IEEE 802.3 / 10BASE-T
IEEE 802.3u / 100BASE-TX
IEEE 802.3ab / 1000BASE-T
Nway Auto-negotiation
IEEE 802.3x Flow Control
IEEE 802.1AB LLDP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1p Class of service, priority protocols
IEEE 802.1Q VLAN tagging
IEEE 802.1X Network Access Control

Interface:
Ports: 8 x 10/100/1000 8-pin X-coded M12 female
LED Panel: System: PWR(G), RPS(G), ALM(R), POST(G); Interface: 1000(G), LNK/ACT(G)

Power:
Redundant input: 24~48 VDC (4-pin L-coded M12 male connector)
Redundant output: 24~48 VDC (4-pin L-coded M12 female connector)
Power consumption: 8W

Mechanical & Environment:
Housing: Metal (IP67 protection)
Operating temperature: -40°C to 70°C (-40°F to 158°F)
Storage temperature: -40°C to 85°C (-40°F to 185°F)
Operating humidity: 5–95% RH (non-condensing)
Storage humidity: 5–95% RH (non-condensing)
Weight: 425 g
Dimensions (W x H x D): 60 x 210 x 41 mm

Ordering Information
Model: 8075-8GT-M12 — Description: Lite Managed 8 x 10/100/1000 M12 IP67 Industrial Switch

Technical specifications

• Standards: IEEE 802.3 / IEEE 802.3u / IEEE 802.3ab / IEEE 802.3x / IEEE 802.1AB / IEEE 802.1D / IEEE 802.1w / IEEE 802.1p / IEEE 802.1Q / IEEE 802.1X
• Ports: 8 x 10/100/1000 8-pin X-coded M12 female
• LEDs: System and interface indicators (PWR, RPS, ALM, POST, 1000, LNK/ACT)
• Power input/output: Redundant 24~48 VDC via 4-pin L-coded M12 connectors
• Power consumption: 8W
• Housing: Metal, IP67 protection
• Operating temperature: -40°C to 70°C
• Storage temperature: -40°C to 85°C
• Humidity: 5–95% RH non-condensing
• Weight: 425 g
• Dimensions: 60 x 210 x 41 mm
• Ordering: 8075-8GT-M12 — Lite Managed 8 x 10/100/1000 M12 IP67 Industrial Switch
