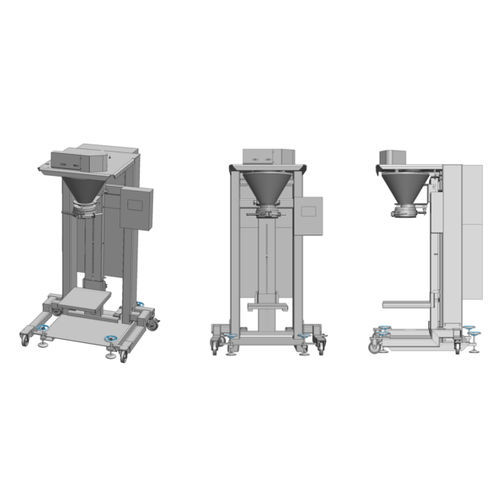

Vertical bagging machine VBDSS

flow-packfor the food industryconstruction

Gross bagging machine with swivel dosing valve for free flowing products, such as plastic granules, grain, pellets, construction material. This machine was developed to make cleaning easy and to avoid residual product in the machine when emtiing. The product is dosed into a discharge hopper over a flat swivel slide in coarse and fine feed. The filling spout holding the bag is at the end of the discharge hopper. Discharge hopper, filling spout and bag chair to support the bags are part of the gross weigher which is guided with solid handle bars. The VBDSS can be equipped with different filling spouts and bag chairs and can thererfore also be used for filling valve bags, buckets or cardboard boxes. The machine properties are: Execution • gross bagging weigher • swivel dosing flap pneumatically operated • product guiding parts of stainless steel • easy to dismantle for cleaning • filling spout with one-hand bag clamp • height adjustable for bag chair • weighing electronics calibratable according to EU-directive MID Options • different filling spouts for different bag sizes, valve bags, buckets or cartons • filling spouts with blow up clamp • stainless steel frame • surface coatings for product guiding parts • vibrators for product guiding parts to avoid caking • integrated metal detector • bag chair with and without vibrator for cartons or buckets • bag chair with rollers • machine movable on wheels • hygienic design for food and pharmaceutical application • ATEX-conform design
