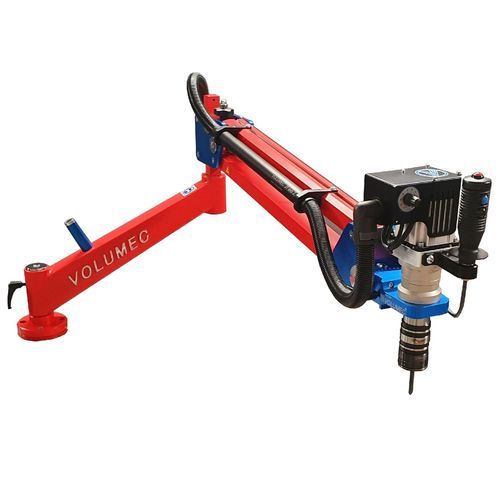

Swing-arm tapping machine JT2150 Evo²brushlesselectricelectronic
Add to favorites
Compare this product
Characteristics
- Type
- swing-arm
- Operation
- electric, electronic, brushless
- Other characteristics
- speed control, compact, variable-speed, with mobile table
- Diameter
Max.: 16 mm
(0.63 in)Min.: 3 mm
(0.12 in)16 mm
(0.63 in)- Working length
Max.: 1,370 mm
(53.94 in)Min.: 330 mm
(12.99 in)1,370 mm
(53.94 in)
Description
Joytap is the electric tapping machine that represents a certainty of performance, quality and low consumption. Its unique technical characteristics, the result of years of development, allow the following operations to be performed with the same machine: tapping, torque-controlled screwing, insert/ helicoil positioning , countersinking and boring.
KEY FEATURES:
- Tapping Capacity M3-M12
- Adjustable speed from 100 to 1000 RPM.
- Working radius 1300 mm 360°
- Electric Brushless Motor 220v.
- Standard multidirectional head.
- Variation of the speed of rotation according to diameter of tapping and counterclockwise maximum speed. for fast tool output.
- Reduced consumption of electricity.
OPTIONAL:
-Electronic depth sensor
-Automatic lubrication system tools
-Fast positioning head 0°-90°
-VASTC
-VASTC-SCAN
VIDEO
