swing-arm tapping machine / electric / brushless / speed control
speed control, automatic
20 mm (0.79 in)
1,900 mm (74.8 in)

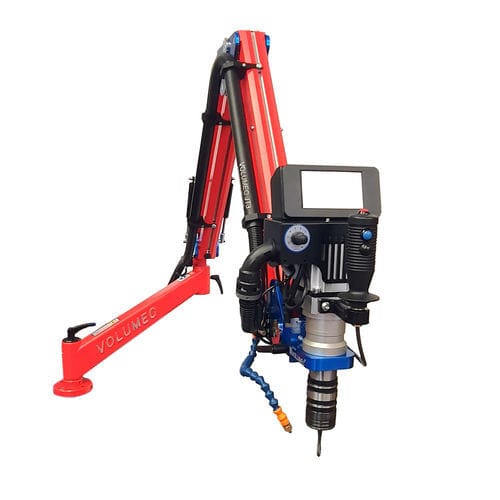

Electronic Tapping Machine VOLUMEC JT3150
Tapping Capacity M3-M20
VASTC CONTROL - VOLUMEC ASSISTED TAPPING SCREWING CONTROL
All models of JOYTAP series can be equipped with touch-screen system, with the following features:
- Drop/stoppage/reversal automatic programming.
- Digital adjustment of torque (Nm) for screwing and tapping.
- Possibility to set pitch and depth for automatic tapping.
- Automatic stoppage screwing mode at torque reached.
- Count of tapping/screwing done.
- Possibility to set and save the receipts of screwing and tapping.
- Multilingual panel.
- Adjustable speed from 50 to 500 RPM.
- Working radius r = 1900 mm 360 °.
- Electric Brushless Motor 220v.
- Triple-balanced articulated arm system made of special aluminium.
- Standard multidirectional head.
- Variation of the speed of rotation according to diameter of tapping and counterclockwise maximum speed. for fast tool output.
- Low noise level.
- Reduced consumption of electricity.
- Balance and fluidity of movement guaranteed by gas springs and adjustable joints mounted on ball bearings.
The new electronic tapping machines series JOYTAP (JT) is a easy to use
machine that allows you to thread with great rapidity and accuracy even if used
by a non-experienced operator.
The tools are fixed to the engine by the quick-change bush clutch.
