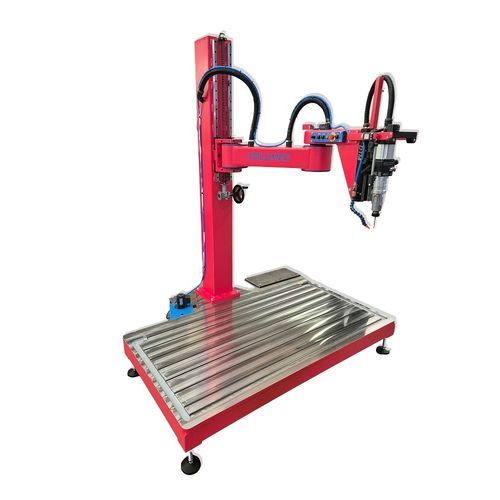

Vertical drilling and tapping machine DRILLTRONIC DTM Evo2 column typeradialswing-arm
Add to favorites
Compare this product
Do you want to buy directly? Visit our shop.
Characteristics
- Structure
- vertical, column type, radial, swing-arm, bench-top
- Number of axes
- 3-axis
- Other characteristics
- electric, variable-speed, with positioning system
- Drilling diameter
Max.: 40 mm
(1.57 in)Min.: 3 mm
(0.12 in)
Description
These tapping machines have an M3-M20 tapping capacity. Using a twist drill, the drilling capacity has a diameter of 1.5 to 16mm. Using a cutter, the drilling capacity has a diameter of 40mm. The work area is 1,100mm, the drilling depth is 135mm and the vertical trip of the column is 500mm. Equipped with an innovative system, DRILLTONIC is the only integrated drilling and tapping unit of its type. It has been designed with an articulated arm in order to provide the maximum amount of working flexibility. The technology used in the design of the structure enables fast and smooth placements. Rigidity and accuracy are provided throughout the machining operations.
Manual drilling

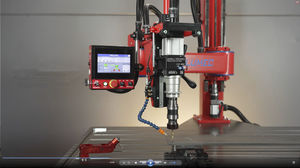

VIDEO
