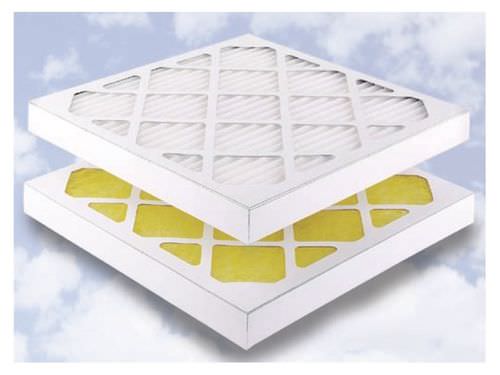

Air filter G2 - F9
panelfine filtrationcoarse pre-filtration

Add to favorites

Compare this product

Go to the VOLZ Luftfilter website for more information

Characteristics

Designed for

air

Filtration element

panel

Applications

fine filtration, coarse pre-filtration, for air conditioning, dust

Other characteristics

pleated

Operating pressure

Min.: 35 Pa
(0.005 psi)

Max.: 250 Pa
(0.036 psi)

Flow

Min.: 0.556 m³/s
(19.635 ft³/s)

Max.: 0.944 m³/s
(33.337 ft³/s)

Description

Applications For pre- and fine dust filtration in Aerial engineering plants and devices of all kinds Air conditioning and paint shops Classification acc. to EN 779 Panel filter G2 Panel filter G3 Panel filter G4 Panel filter M5 Z-Line G4 Z-Line M5 Z-Line M6 Versions Standard sizes with stamped cardboard frame (G4 only) Special sizes on request Frame types for Z-Line: cardboard frame, galvanized metal frame, aluminium frame, plastic frame Frame types for Panel Filters: cardboard frame and plastic frame Optional with gasket Z-Line special sizes or with fine filtration media are additionally equipped with metal expanded mesh on clean air side Material characteristics Tested according to EN 779:2012 Fire prevention requirements according to DIN 53438-3 (F1) Humidity resistant up to 100% r. h. Temperature resistant up to max. 80°C dependingon type of frame
