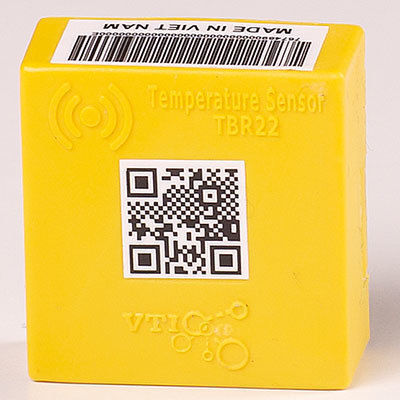

Relative humidity and temperature sensor TBR22-E

surface-mountwirelessbuilt-in transmitter

Overview
The TBR22-E is a wireless environmental temperature and humidity sensor designed to monitor conditions in electrical cabinets and outdoor installations. It continuously measures and transmits data to centralized monitoring software for real-time display of temperature, humidity, warning status, trend graphs, location mapping and customizable reports. Manufacturer: VTICorp – Viet Nam.

Key uses

• Monitoring temperature and humidity in electrical cabinets, switchgear and power‑grid equipment.
• Direct installation on equipment and measurement points, including bus bars and high‑voltage lines up to 500 kV.
• Applicable in industrial sites, control centers, factories, warehouses and production workshops.

Features

• Wireless 2.4 GHz communication with up to 100 m transmission in open space.
• Available in battery and self‑induction power versions (battery version ≥2 years stated operation).
• Compact housing for cabinet or outdoor mounting; protection rating IP50 (dependent on conditions).
• High measurement accuracy: ambient temperature ±0.2℃, humidity ±2 %RH; bus bar temperature accuracy ±1℃.
• Multiple color options: Red, Yellow, Blue, Black; weight 37 g; dimensions 32.5 x 31.5 x 14.4 mm.

Software capabilities

• Real‑time warning display for heat‑generating devices and abnormal conditions.
• Instantaneous values and trend graphs for temperature, humidity and pressure at measurement points.
• Lists of abnormal temperature warnings for bus bars, cable ends and contact points to support maintenance without power interruption.
• Location mapping and coordinate retrieval.
• Customizable statistics and report export; mobile monitoring via iOS/Android applications.

Data sheet

• Model: TBR22-E
• Communication: Wireless 2.4 GHz
• Transmission distance: 100 m (open space)
• Sampling frequency: 5 s (default)
• Power supply: Self‑induction source (≥0.5 A) or battery (≥2 years for battery version)
• Bus bar temperature range: -10℃ to 120℃ (accuracy ±1℃)
• Measuring temperature range: -40℃ to 125℃ (accuracy ±0.2℃)
• Humidity measuring range: 0–100 %RH (accuracy ±2 %RH)
• Output capacity: 08 dB
• Operating temperature: -10℃ to 80℃
• Working humidity: ≤99%RH
• Protection: IP50 (depending on conditions)
• Environmental certification: RoHS 2
• Dimensions (mm): 32.5 x 31.5 x 14.4 (L x W x H)
• Weight: 37 g
• Colors: Red, Yellow, Blue, Black

Additional notes
Different versions are designed to match actual operating conditions. Power options include induction from the measured object or battery. The sensor provides power, thermal and ambient parameters to support predictive maintenance and reduce the risk of fire or explosion due to overheating.

Technical specifications

• Manufacturer: VTICorp – Viet Nam
• Model: TBR22-E
• Refer to the data sheet above for full technical details
