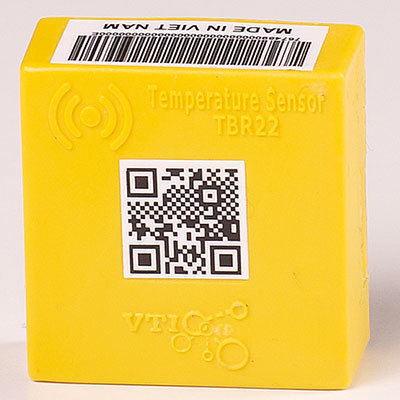

Screw-in temperature sensor TBR22

strap-onwirelessbuilt-in transmitter

Features

• Measures temperature at bus bars, cable ends and contact points with high accuracy and reliability.
• Designed for use on systems with voltages up to 500 kV.
• Available in self-induction (battery-less) or replaceable battery (CR3032) versions for safe operation in high-voltage environments.
• Centralized monitoring software without limits on number of sensors per station or number of substations.
• Suitable for cabinet mounting and outdoor installation.

Product information
The TBR22 sensor was developed by VTICorp (Viet Nam). It continuously measures and transmits temperature data to central software that provides real-time temperature values and alarm states, instantaneous and trend graphs, abnormal-temperature lists to support maintenance without power interruption, geo-location of measurement points, statistics and configurable reports, and mobile monitoring (iOS/Android) for quick responses.

Outstanding advantages

• Direct installation on equipment and measurement points, including on sources up to 500 kV.
• Power options: induction power from the measured conductor (current ≥ 5 A) or replaceable CR3032 battery (battery variant).
• Long battery life: typically up to 2 years for battery version depending on usage profile.
• Wide measuring range: -10°C to 120°C with ±1°C accuracy, enabling precise thermal statistics for system assessment.
• Provides operational parameters including power, thermal and ambient conditions.
• Humidity measurement up to 100% with ±2% RH accuracy.
• Operating conditions: -10°C to 80°C, humidity up to 100% RH.
• Ingress protection: IP65 (IP68 depending on variant/conditions). RoHS 2 certified.

Data sheet (key rows)
Functions | Details | Details
Product code | TBR22 | TBR22-B
Communication | Wireless, 2.4GHz | Wireless
Transmission distance | 100m in open space | 100m in open space
Sample transfer frequency | 5s (default) | 60s (default for alternative variant)
Power Supply | Self-induction source with current ≥ 5A | Battery CR3032 235mAh replaceable (battery life up to 2 years depending on use)
Measuring temperature range | -10℃ ~ 120℃ | -10℃ ~ 120℃
Accuracy | ±1℃ | ±1℃
Output capacity | 08dB | 08dB
Working temperature | -10℃ ÷ 80℃ | -10℃ ÷ 80℃
Working humidity | ≤ 99%RH | ≤ 99%RH
Protection level | IP65 | IP68
Waterproof standards | X5 | X5
Environmental certification | RoHS 2 | RoHS 2
Dimensions (L x W x H mm) | 32.5 x 31.5 x 14.4 | 37 x 34 x 13.3
Weight | 35 gram | 35 gram
Color | Red, Yellow, Blue, Black | Red, Yellow, Blue, Black
Installation method | Straps | Epoxy, screw mounted or belt mounted; permanent magnet available on sensor

Software / Monitoring features

• Displays alarm status for heat-generating equipment.
• Shows instantaneous temperature values and trend graphs over time for each point.
• Provides map-based location and coordinates of measurement points.
• Generates color-coded lists of temperature anomalies by severity.
• Supports mobile monitoring via Android and iOS applications.

Technical specifications

• Model: TBR22 (also available as TBR22-B)
• Manufacturer: VTICorp – Viet Nam
• Communication: Wireless 2.4 GHz
• Transmission distance: 100 m (open space)
• Sampling frequency: 5 s (standard) / 60 s (alternate)
• Power supply: induction (for conductor current ≥ 5 A) or replaceable CR3032 235 mAh battery
• Battery life: up to 2 years (dependent on usage)
• Temperature range: -10°C to 120°C
• Temperature accuracy: ±1°C
• Humidity range: up to 100% RH; humidity accuracy: ±2% RH
• Output capacity: 08 dB
• Operating temperature: -10°C to 80°C
• Operating humidity: ≤ 99% RH
• Protection: IP65 (IP68 variant available)
• Waterproof standard: X5
• Environmental: RoHS 2
• Dimensions (mm): 32.5 x 31.5 x 14.4 (variant 37 x 34 x 13.3)
• Weight: 35 g
• Colors: Red, Yellow, Blue, Black
• Installation: straps; epoxy, screw or belt mounting; optional permanent magnet
