Industrial radiator 6 series

industrial radiator
industrial radiator
Add to favorites
Compare this product


industrial, explosion-proof

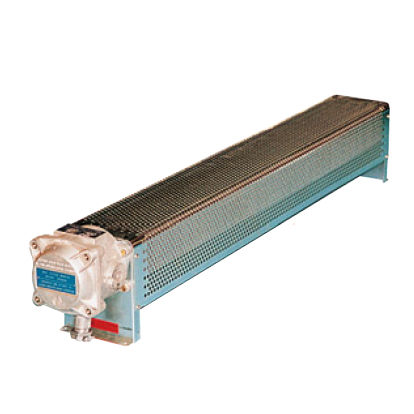

ATEX RADIATORS FOR DUSTY ENVIRONMENT - Ex d These particularly robust appliances have been designed to provide reliable heating at 40°C in explosive ambient with conductive dust. and max. skin temperature of heating element located inside the vessel 195°C,at an ambient temperature from - 20°C up to 40°C. Connection via gland to an Ex t IIIC box IP66 equiped with ground terminal for equipotential connection;protected steel brackets and housing. Horizontal fixing Room radiator ATEX 94/9/CE certified, for heating of ATEX hazardous atmosphères (ambient température from - 20°C up to 40°C, maximum humidity 95%)- Built with a set of heating pins o 16 mm mounted in a coated Steel housing. - Aluminium junction box IP 55IK 7 with cable gland . - Explosion-proof equipment of category 2 for surface industries usable in risk areas 1 and 2, in gas environment of the group IIC whose température of self ignition is higher than 200°C. We recommend the use of a thermostat allowing an optimal contrai of ambient température in the room : Atex control thermostat Ex de IIC T6 reference 6023-02. Spécial précautions must be taken to ensure a safe and appropriate use of this equipment. Please consult us or read the instruction manuel previously.


No catalogs are available for this product.
